YS-50 industry application drone

Basic parameters of the rack:
Product type: Dual electric version industry application transportation heavy load flight platform
Product wheelbase: 2150mm
Product size: 1670 * 1670 * 670mm (unfolded)
954 * 925 * 845mm (folded)
Product weight: 14kg (rack weight)
30.5kg (maximum configuration, without battery)
57.9kg (including 18S30000mAh intelligent dual battery weight)
107.9kg (full load 50kg, takeoff weight)

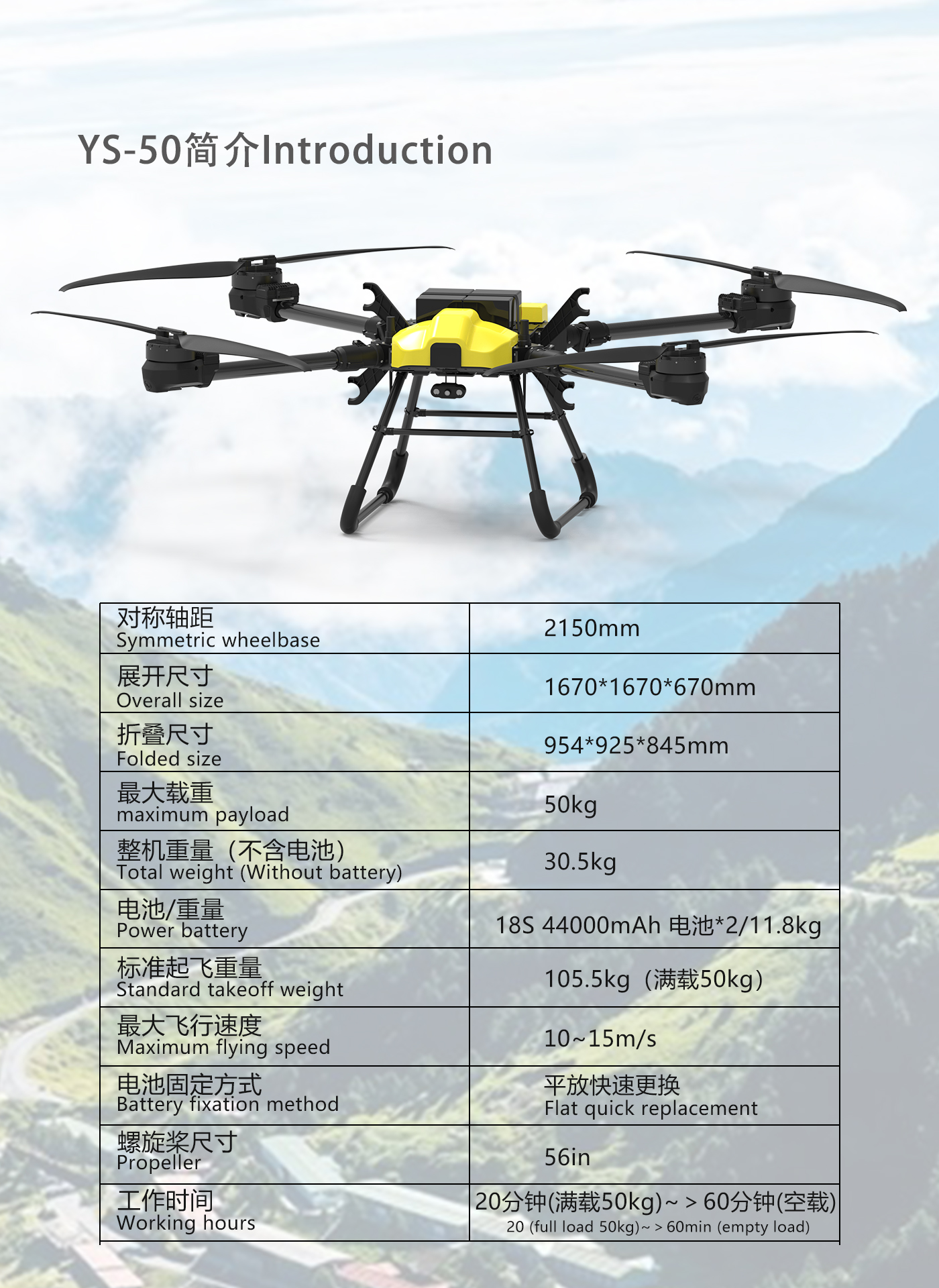

54.5kg (including 18S44000mAh soft pack dual battery weight)
105.9kg (full load 50kg, takeoff weight)
Arm size: 46 * 50mm
Load capacity: 50kg
Fixed method: plug-in dual electric version
Adapted model: YS-50 dual electric version industry application flight platform
Flight control: KX
Remote control: H16
Power system: X13 (motor)
200A (electrical regulation)
56 inches (propeller)
Battery: 18S 30000mAh * 2/18S44000mAh soft pack battery
Working time: 60 minutes (unloaded, takeoff weight 54.6kg18S44000mAh)
20-25 minutes (full load 50kg, 105.5kg18S44000mAh)
50 minutes (empty, takeoff weight 57.9kg18S30000mAh)
15-20 minutes (full load 50kg, 107.9kg18S44000mAh)

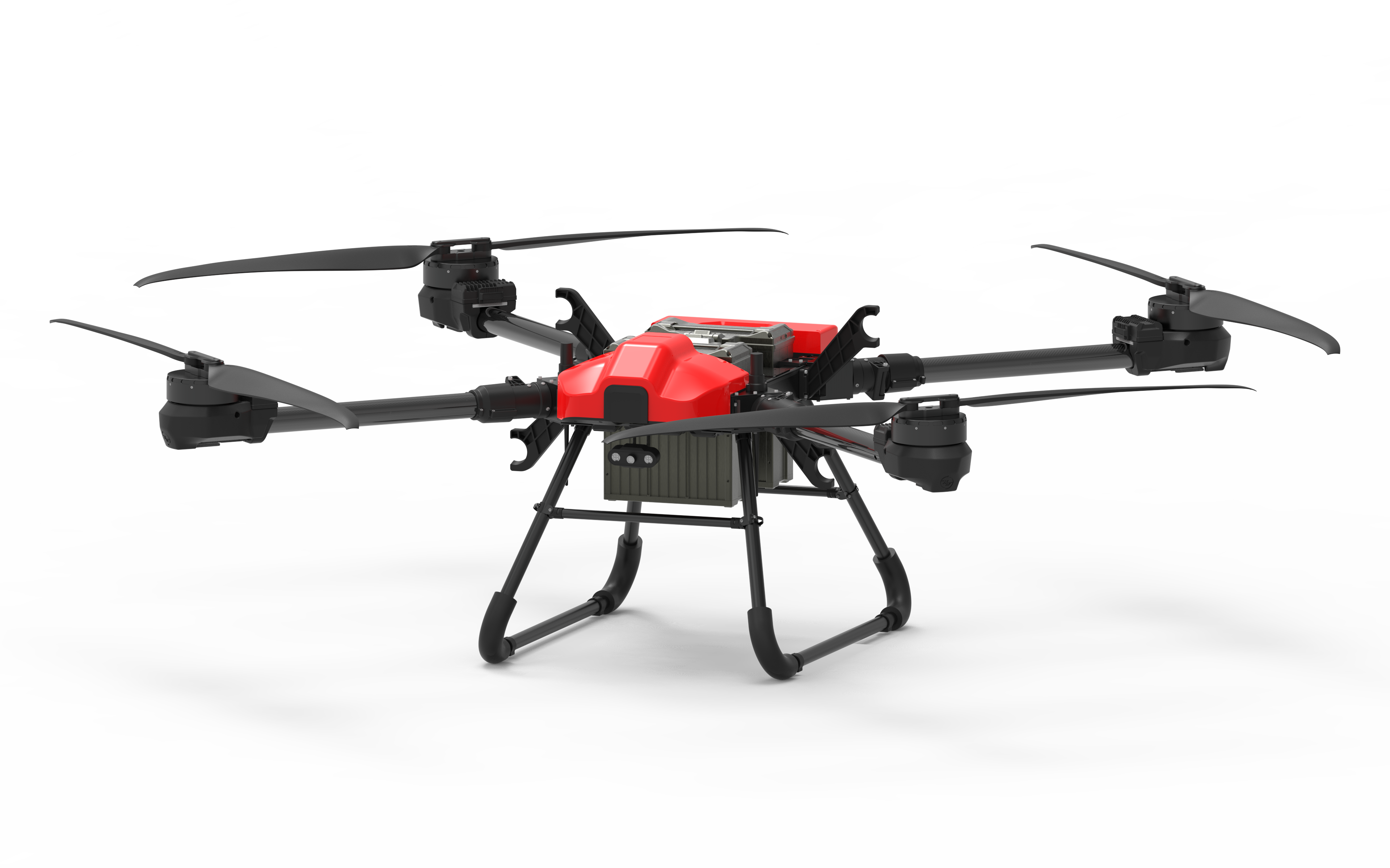

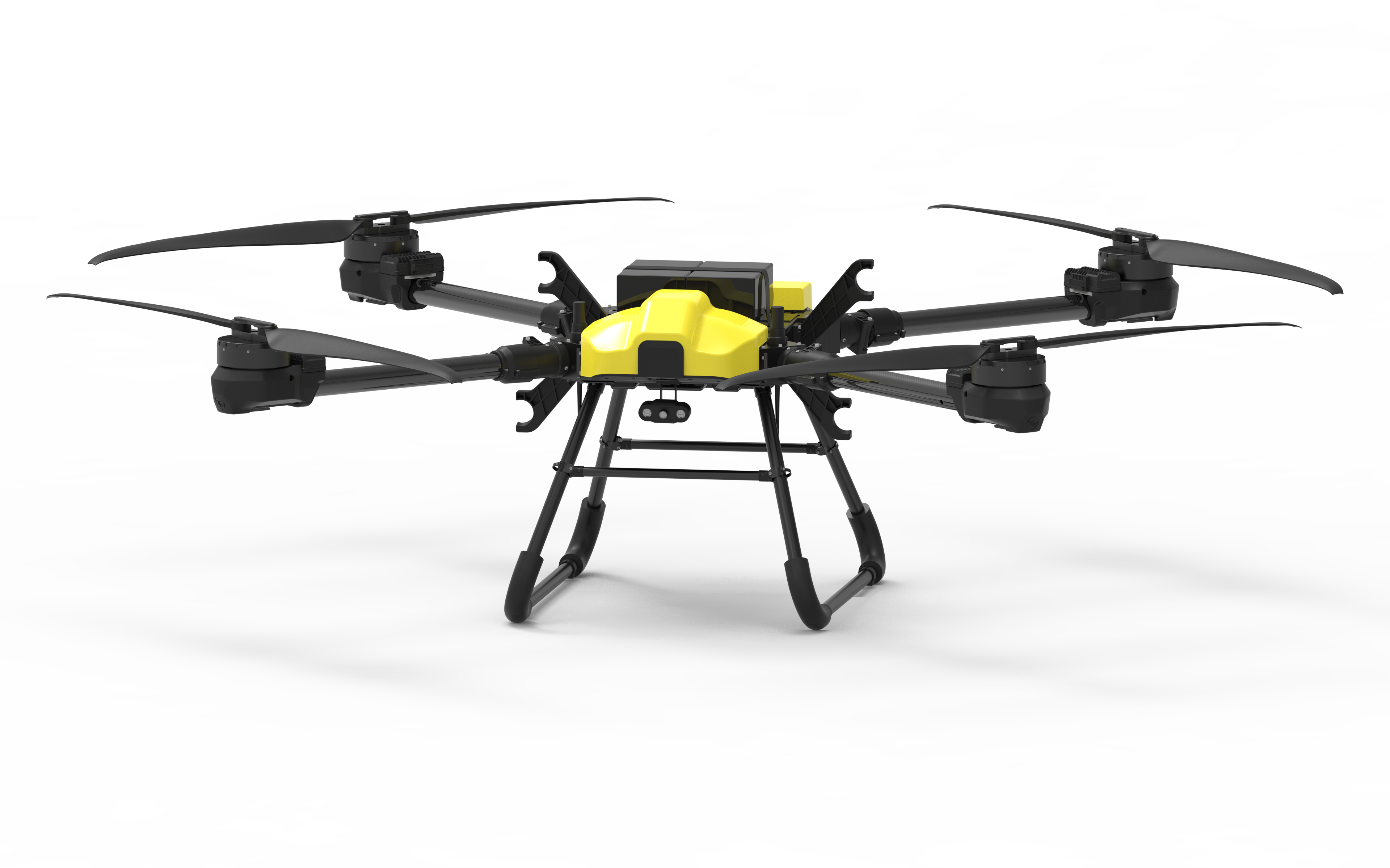

    Industry application of unmanned aerial vehicles with a load capacity of 50KG
    YS-50 features a brand new structural design, modular body design, strong compatibility, and a quick detachable dual battery design,
    Adopting a front and rear folded quadcopter design, it can be equipped with obstacle avoidance radar and ground defense radar for expansion. The front FPV provides a first view view
    Clear image feedback, equipped with a 56 inch propeller with strong power, lightweight design throughout the body, small size, large load capacity, convenient
    Carry homework with you. Maximum effective load capacity 50kg, suitable for transporting mounted materials, transporting saplings, high-altitude throwing equipment, etc
    Multiple industries
