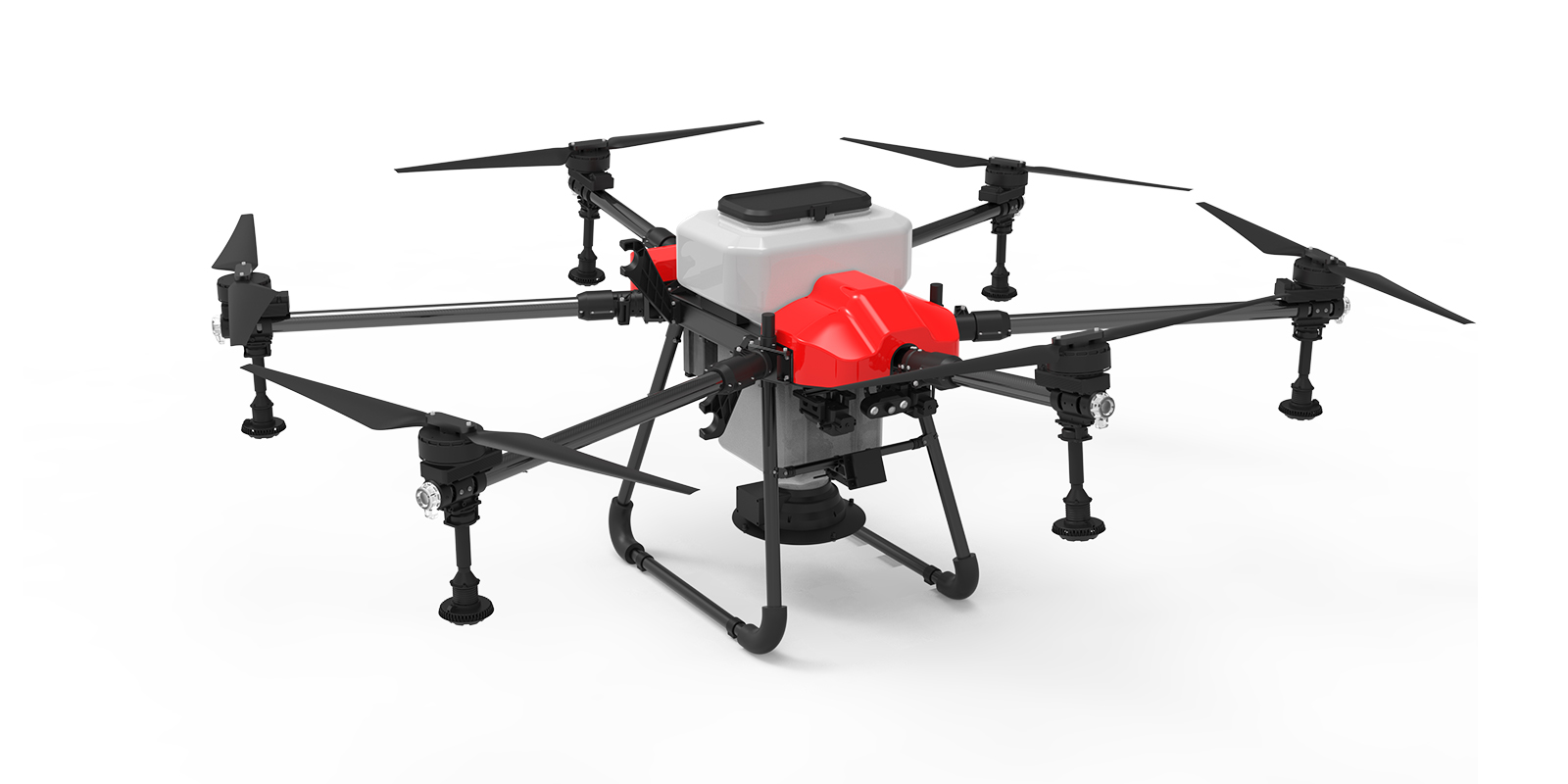

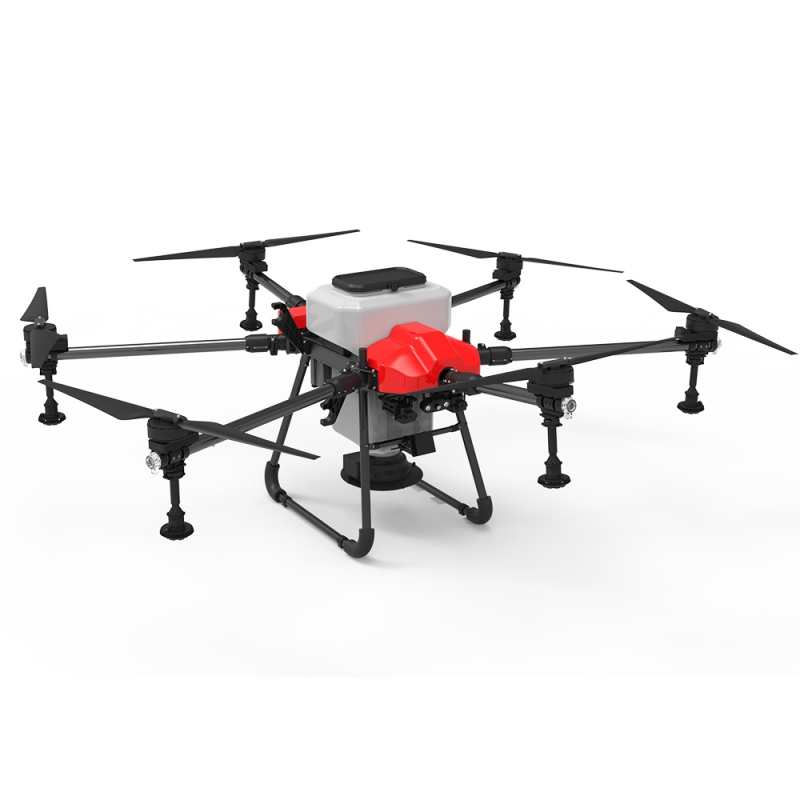

X6-30 plant protection spreader

Basic parameters of 40kg plug-in particle spreading frame:
Product Name: X6-30 Spreader
Product type: Six-rotor plug-in spreader structure
Product wheelbase: 2150mm
Product size: 2030*1915*770mm (expanded)
1145*760*905mm (folded)
The overall size of the spreader: 430*304*703mm
Spreader size: 276*276*163mm
Product weight: 1.94kg (weight of 40L spreading box)
1.60kg (spreader weight))
15.58kg (frame weight)
28.6kg (the highest configuration, without battery)
38kg (including battery weight)
78kg (full load, take-off weight)
Arm size: 37*40mm/42*45mm/47*50mm
Medicine box volume: 40L
Spreading box volume: 40L
Spray width: 8~12 meters
Working efficiency: 120 mu/hour
Flight control: K++V2/V9 AG/ PALADIN
Remote control: H12/T12
Power system: X9plus 100kv (motor)
120A (ESC)
36 inches (propeller)
Spraying system: 5L water pump (voltage: DC44-60.9V) pressure nozzle/centrifugal nozzle kit
Battery: 14S 28000mAh
Spreading system: 360° large flow spreader
Hover time: 23 minutes (no-load hover 14S 28000mAh) 8 minutes (full-load hover 14S 28000mAh)
Spreading system: Spray width 5~10 meters
Operating particle diameter: 0.5~6mm (Dry particle)
Valve angle: 0~60 degrees
Maximum speed: 1100r/min
Maximum power: 150w
    Escort for accurate spreading and provide an efficient spreading platform




    The Dream Eagle Sowing System Carrying Platform is an automated seeding and carrying platform structure
    developed byDreamEagle Technology for the sowing and plant protection links in agricultural production.
    It can cooperate with the Dream Eagle X4-30-F30 plant protection drone platform to efficiently and accurately
    deliver solid particles such as seeds and fertilizers to the required environment through high speed.
    It can be equipped with various control systems and RTK high-precision navigation facilities.


    Efficient sowing, saving time and effort
    Streamlined model - efficient installation



    Compared with the manpower seeding with high labor cost, low seeding efficiency and high labor intensity,
    the Dream Eagle Technology seeding system has low usage cost, high efficiency, and labor-saving.
    Taking rice live broadcast as an example, a Dream Eagle seeding system is equipped with a platform,
    which can complete more than 80 acres of rice seeding per hour, which is 50 to 60 times more efficient than manual seeding.
    Intelligent control, fully autonomous sowing, and easy operation under natural conditions where ground spreading equipment is difficult to work.


    With the stability of the structure of the Dream Eagle Plant Protection UAV, the Dream Eagle technology seeding system can accurately sow seeds and solid particles to the desired location.
    The rotary quantitative opening design ensures that the scattered particles do not agglomerate or stick together, and the landing is evenly distributed to meet the needs of precise spreading.
    It solves the problems of inaccurate dosage of traditional aerial seeding, low flying precision and uneven seeding.












    In a new dimension, to meet different sowing needs
    Dream Eagle Technology Plant Protection UAV is compatible with more flight control systems,
    and can easily cope with different terrain environments such as plains, hills, and woodlands.
    Realize fully autonomous seeding operations in multiple scenarios; compared with large-scale ground equipment,
    aerial operations can avoid crushing crops and destroying the soil microbial environment.
