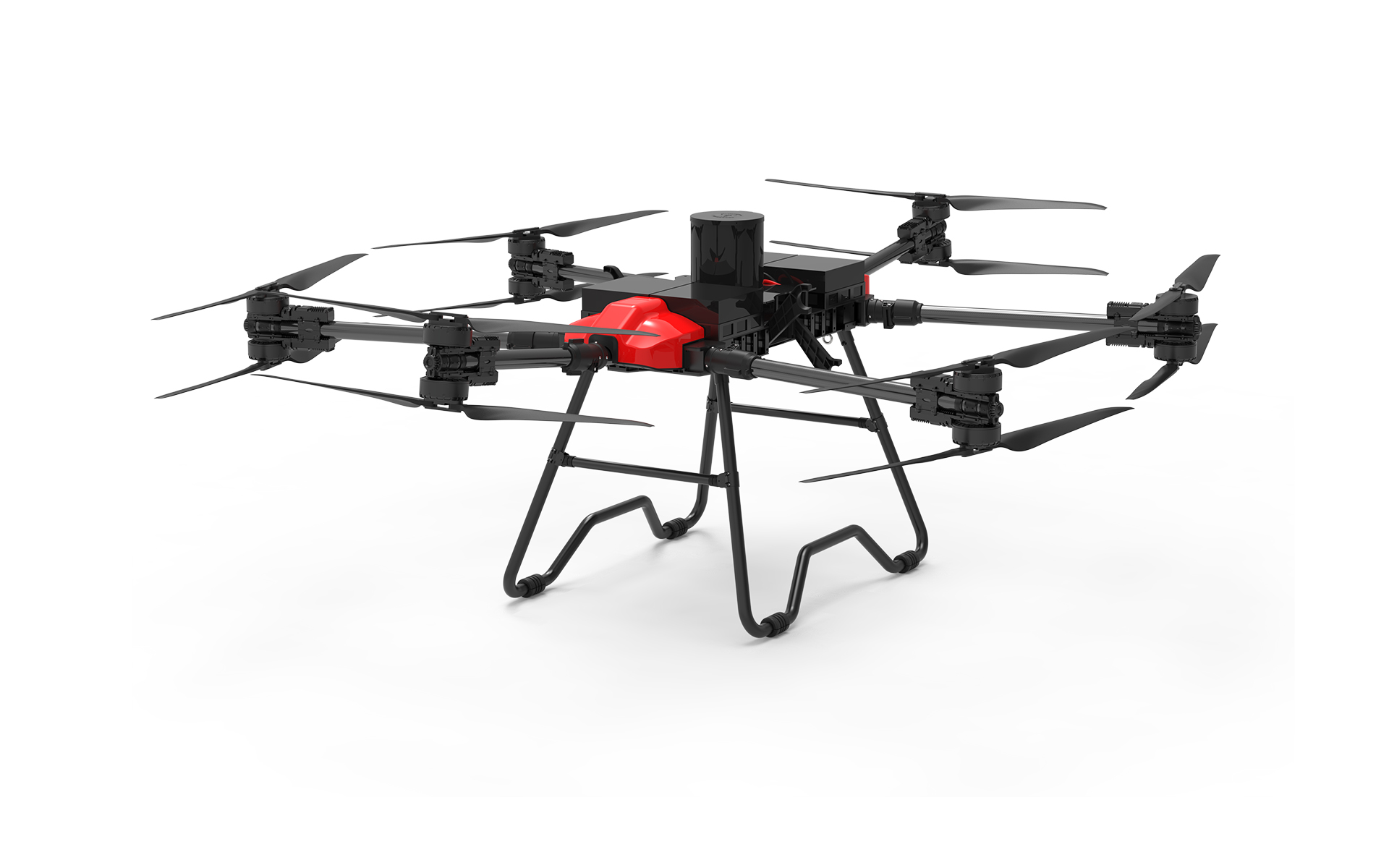

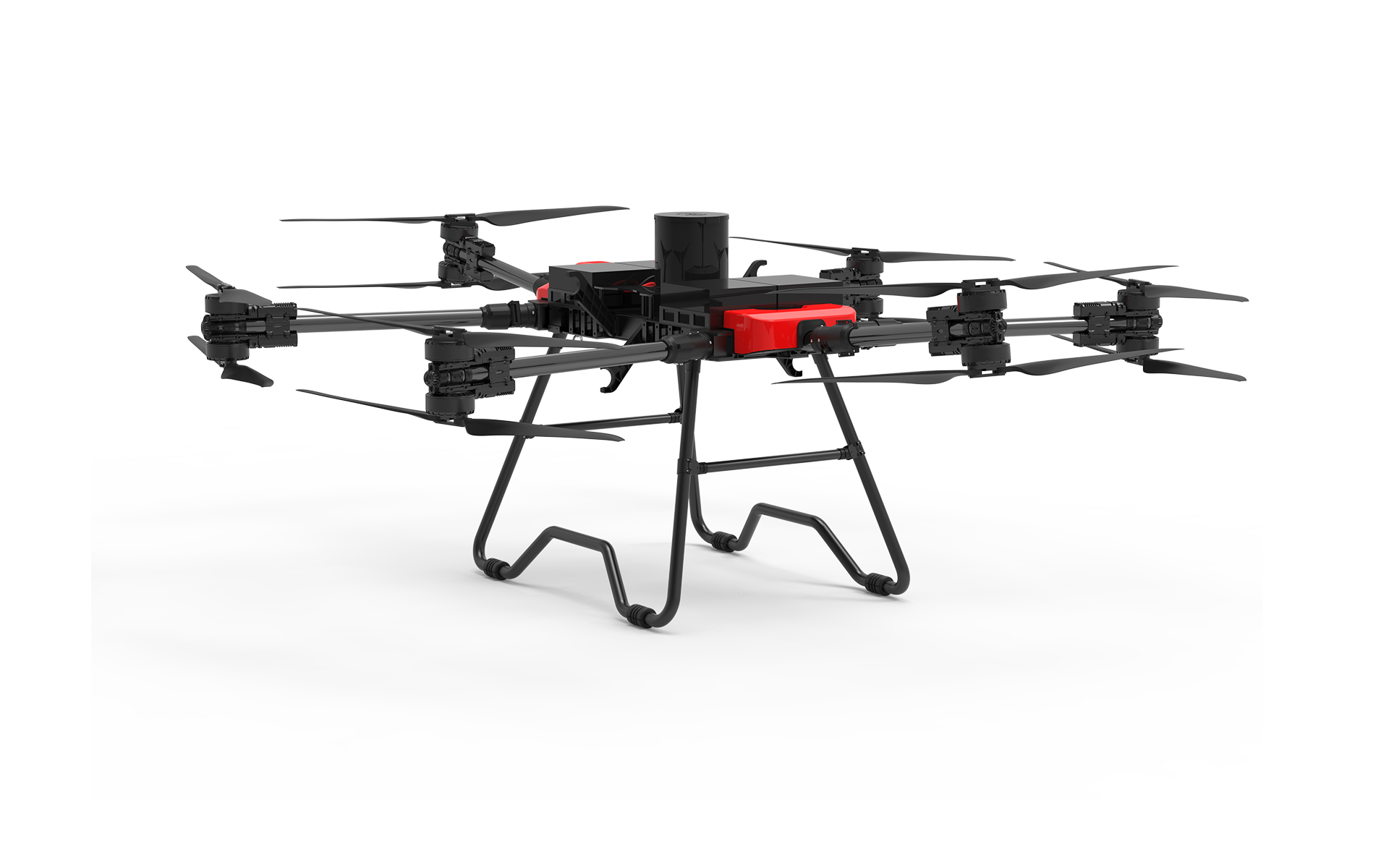

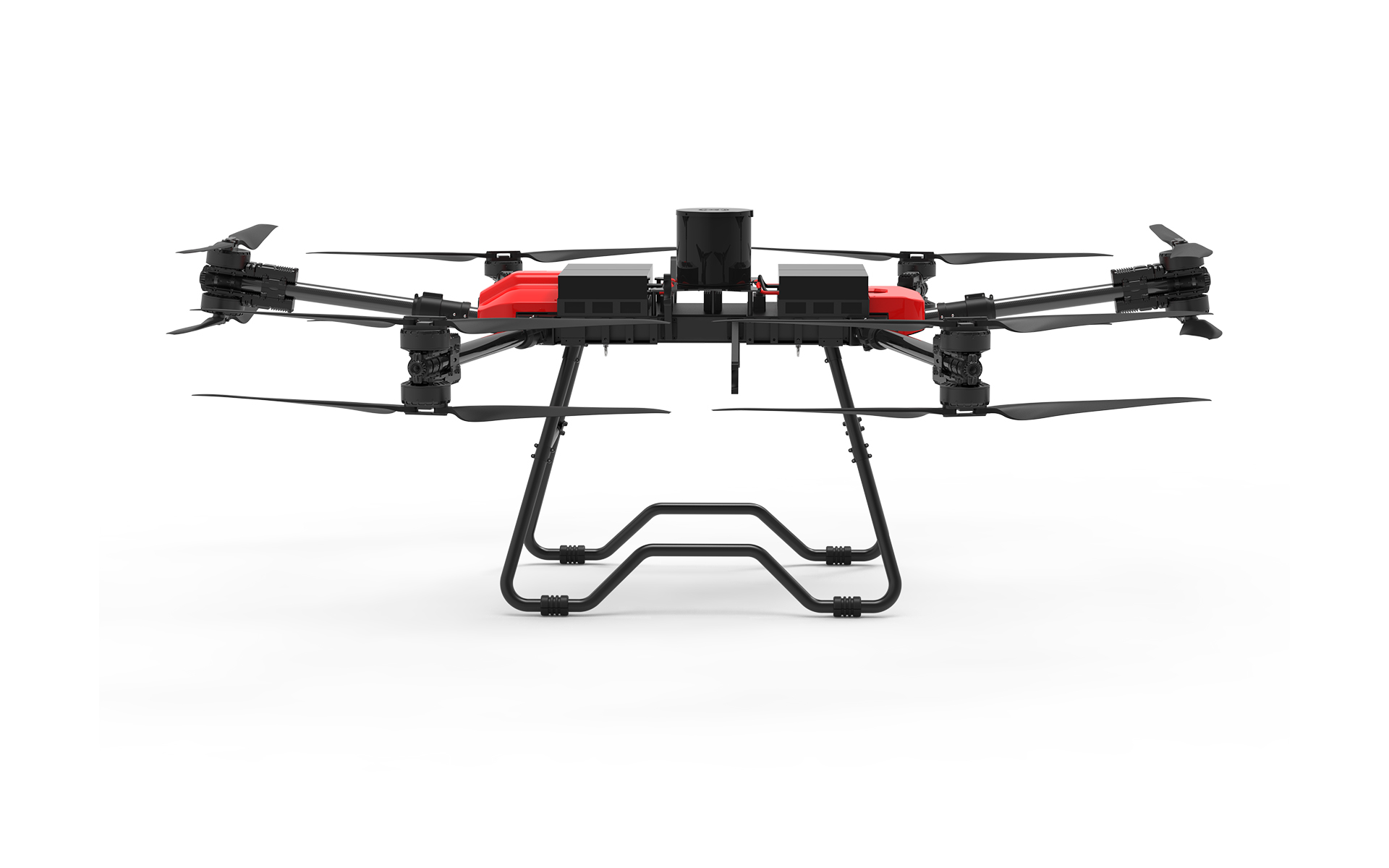

YS-F100A 100kg transport drone

YS-F100A Industry Application Drone 2024 V1.8

Product wheelbase: 2565mm

Product size: 2795 * 2359 * 982mm (unfolded)

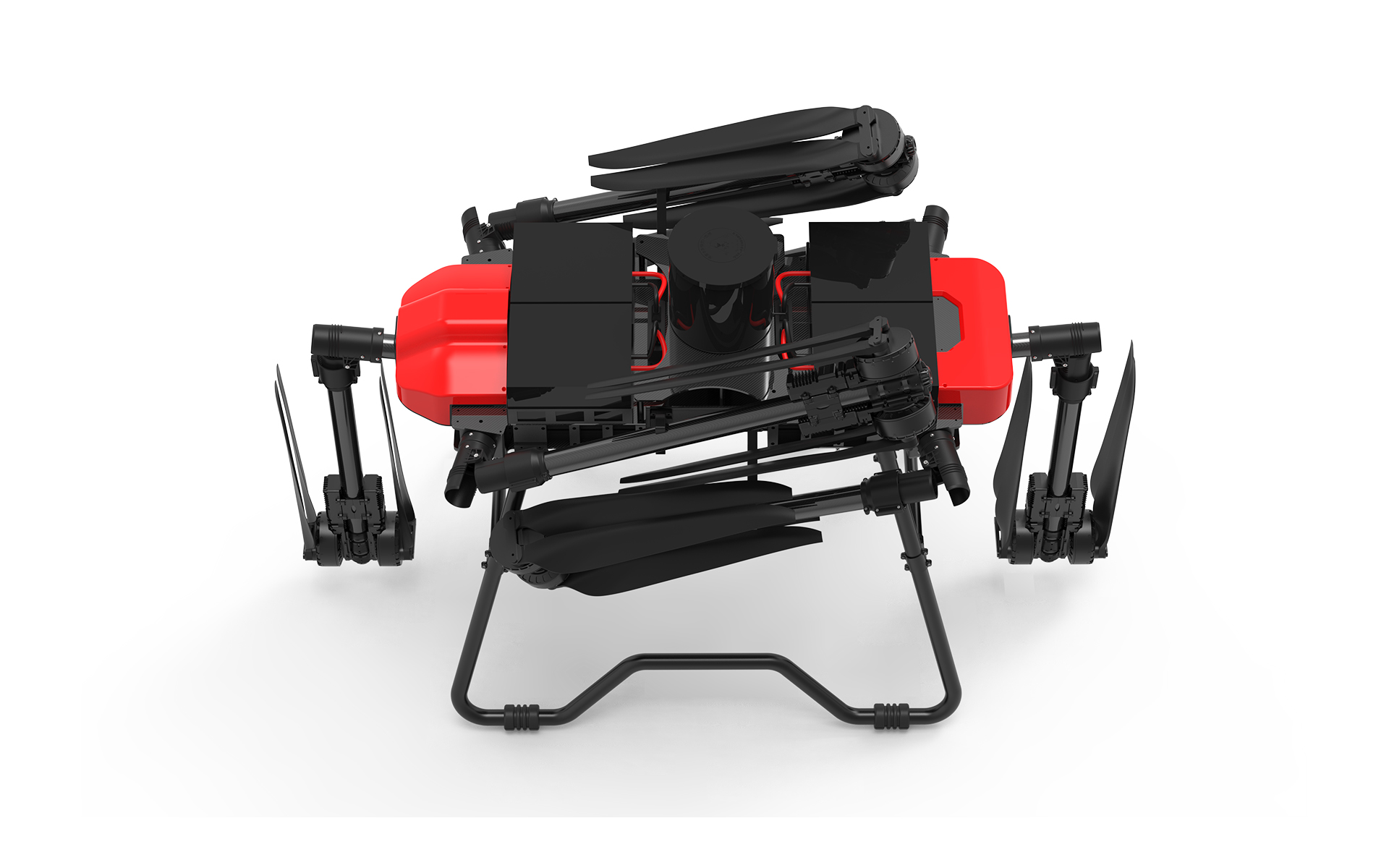

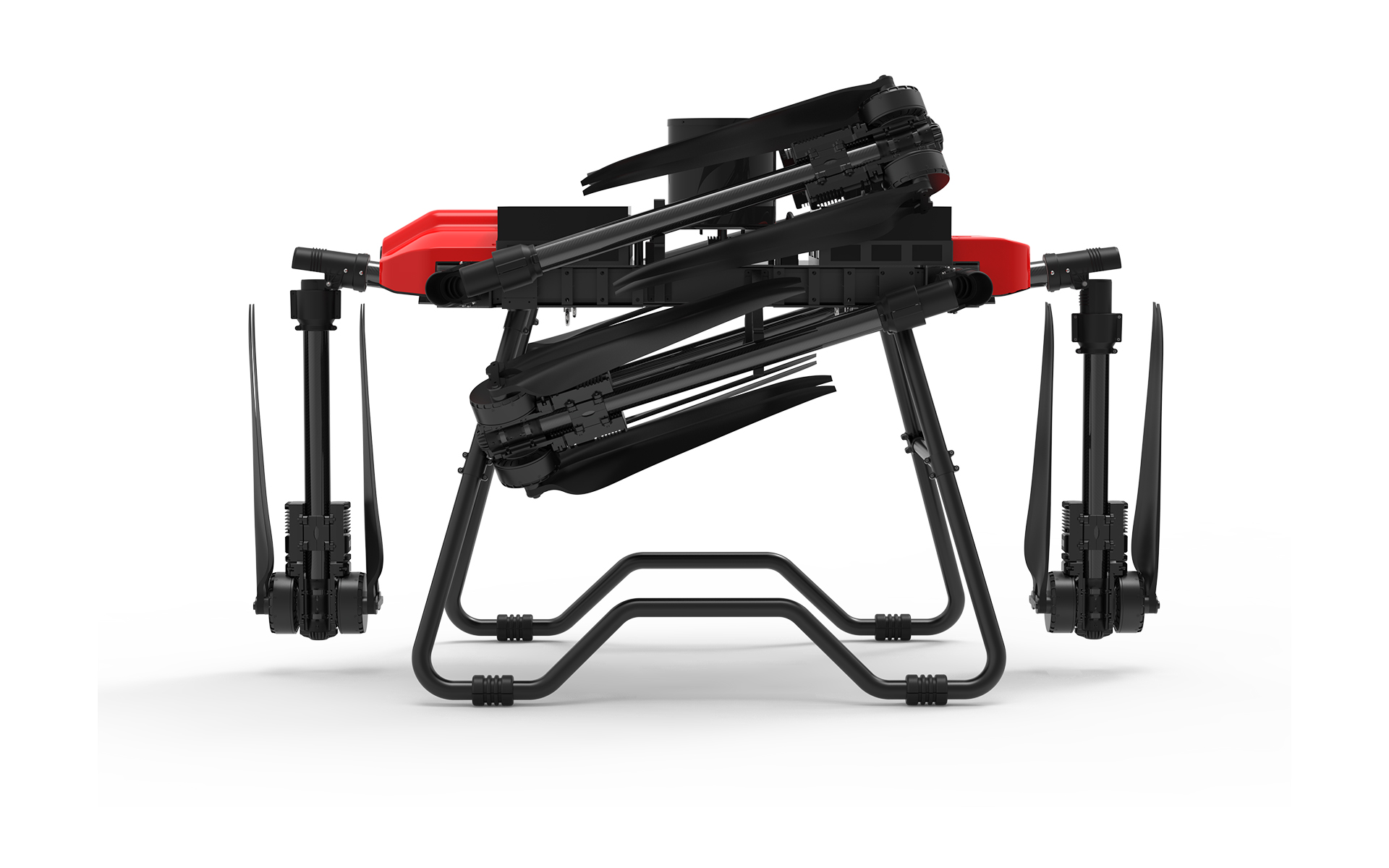

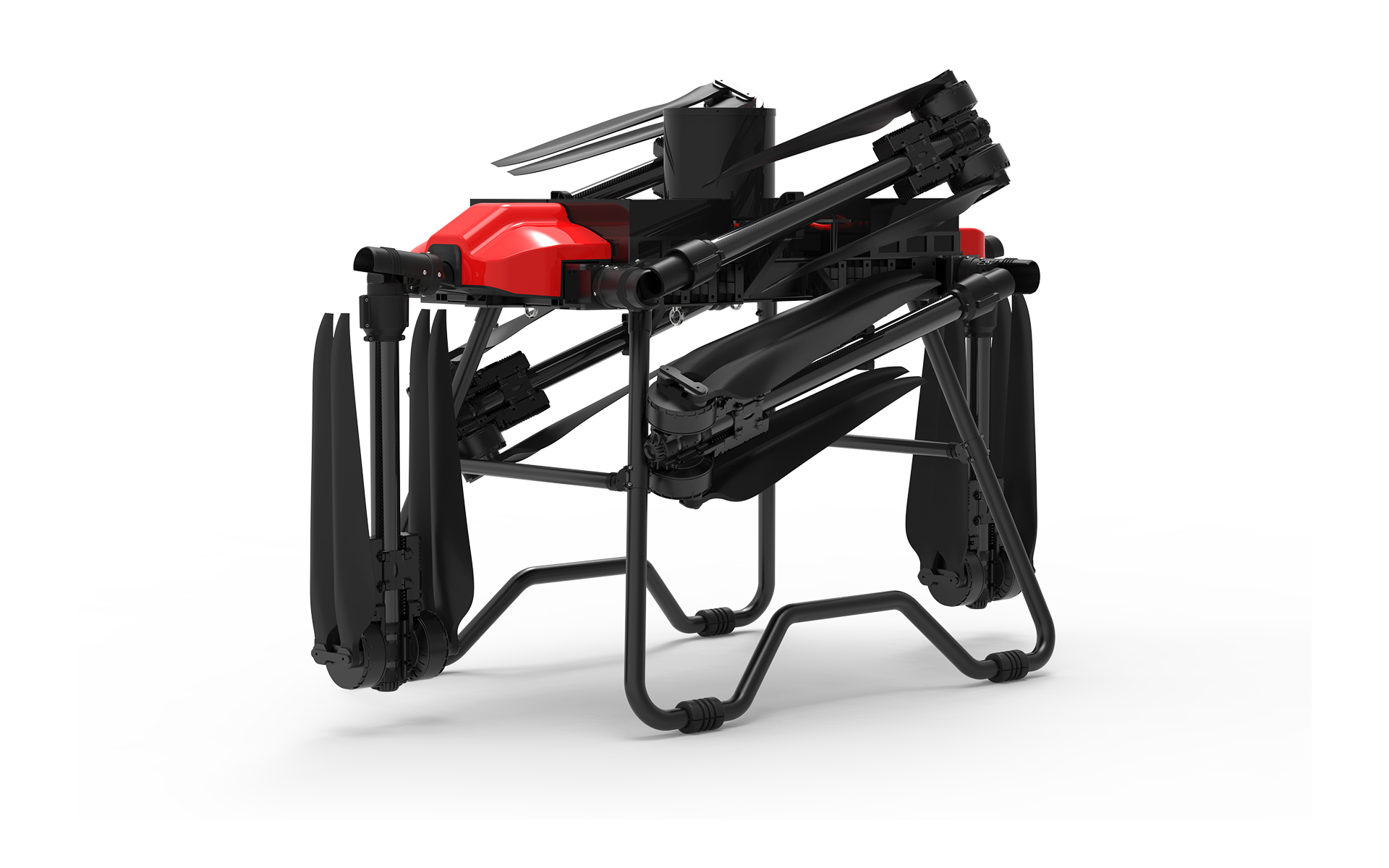

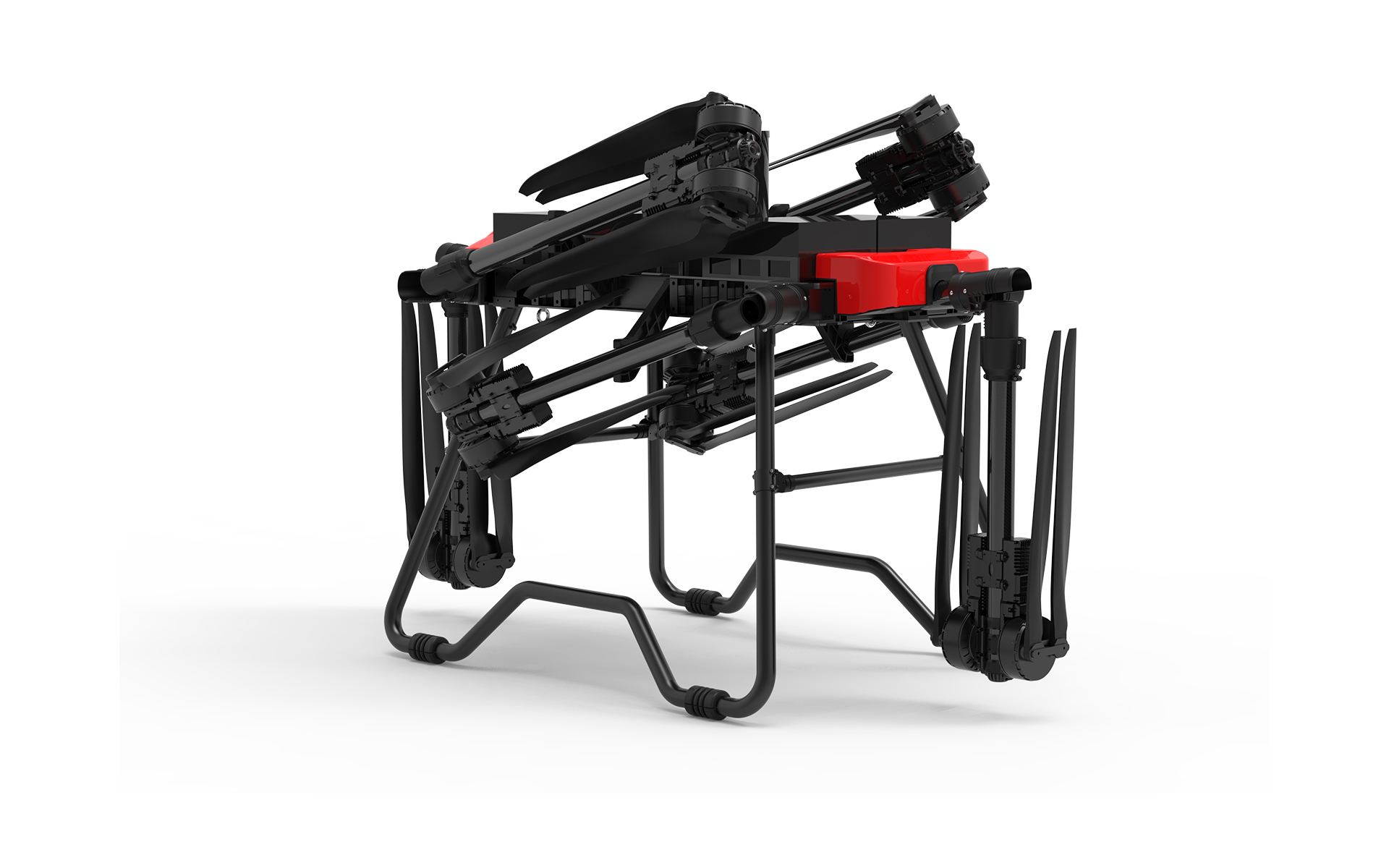

1747 * 853 * 1132mm (folded)

Product weight: 22kg (rack weight)

66.8kg (maximum configuration, battery not included)

≈ 106.8kg (including weight of four batteries)

≈ 206.8kg (100kg full load, takeoff weight)

Arm size: 46 * 50mm

Load capacity: 80~100kg


Battery fixing method: quick installation of four battery compartments

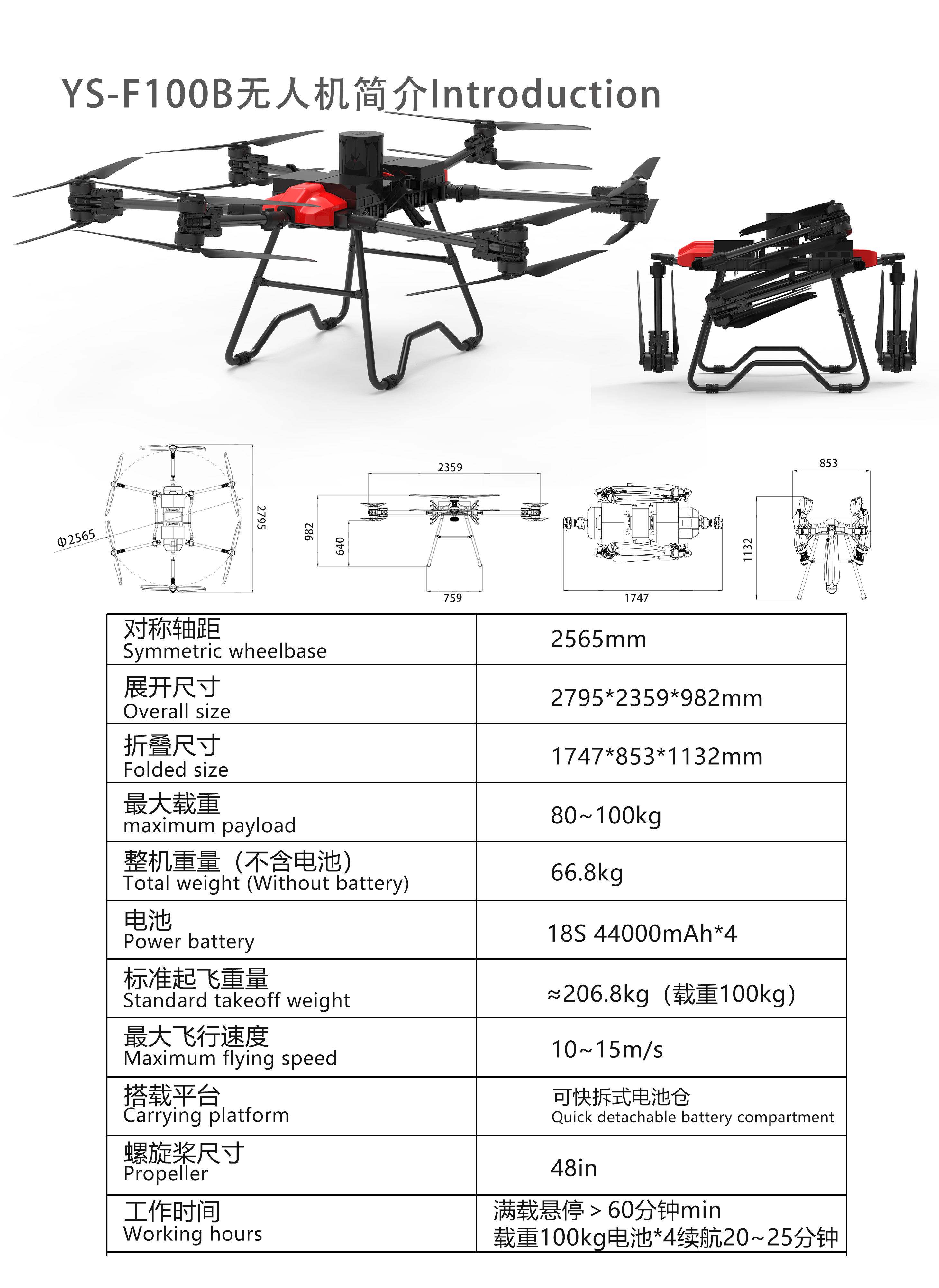

Compatible model: YS-F100B four electric version industry application flight platform

Flight Control: Bo Ying/Microgram

Remote control: H16/H30/MK32

Power system: X11 MAX (motor)

150A (electrically adjustable)

48 inches (propeller)

Battery: 18S 44000mAh * 4 (Chaohang/Haiying)

Working time:>60 minutes (unloaded, takeoff weight 106.8kg)


≈ 20-25 minutes (with a full load of 100kg, depending on the actual flight time)
    YS series industry application drones (customized models)
    YS-F100A features a brand new body structure, modular design, and strong compatibility. It is equipped with a quick detachable four pack battery compartment and a front and rear folding six rotor system. It can be equipped with various pod gimbal, parachute, and throwing devices for expansion. The front FPV provides clear image feedback from the first perspective. It can carry a 48 inch propeller with strong power, lightweight, small size, and large load capacity, making it easy to carry and operate. The maximum effective load capacity is 100kg, suitable for transporting and attaching materials, transportation, high-altitude throwing equipment and other industries (customized large capacity batteries can be used to extend flight time)
