X4-30 frame

X4-30 Pluggable Agricultural UAV Pluggable Structure

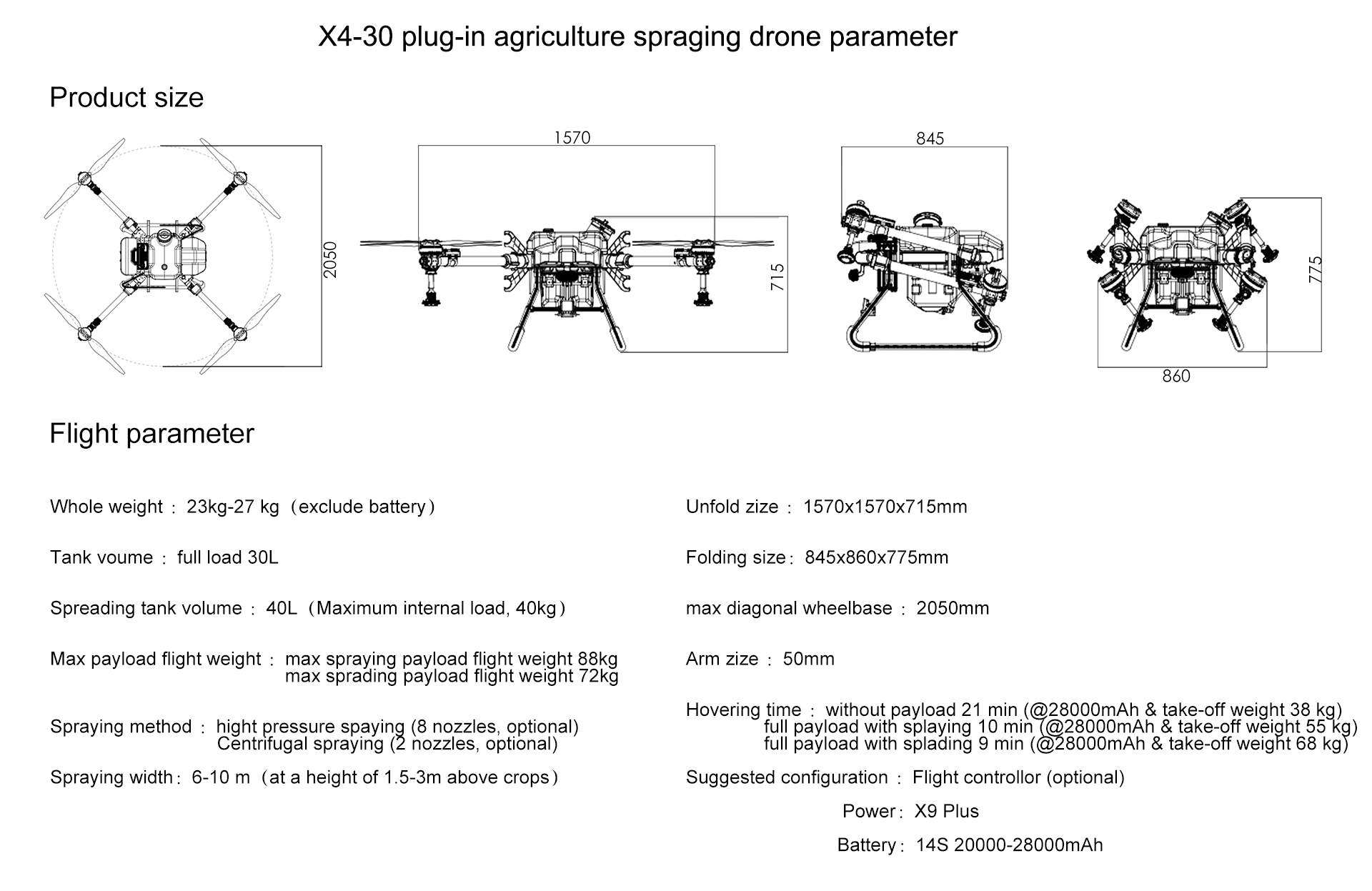

30kg plug-in rack basic parameters:
Product name: X4-30
Product type: plug-in plant protection machine structure
Product weight: 23-27kg (maximum configuration, excluding battery)
Expanded size: 1570*1570*715mm

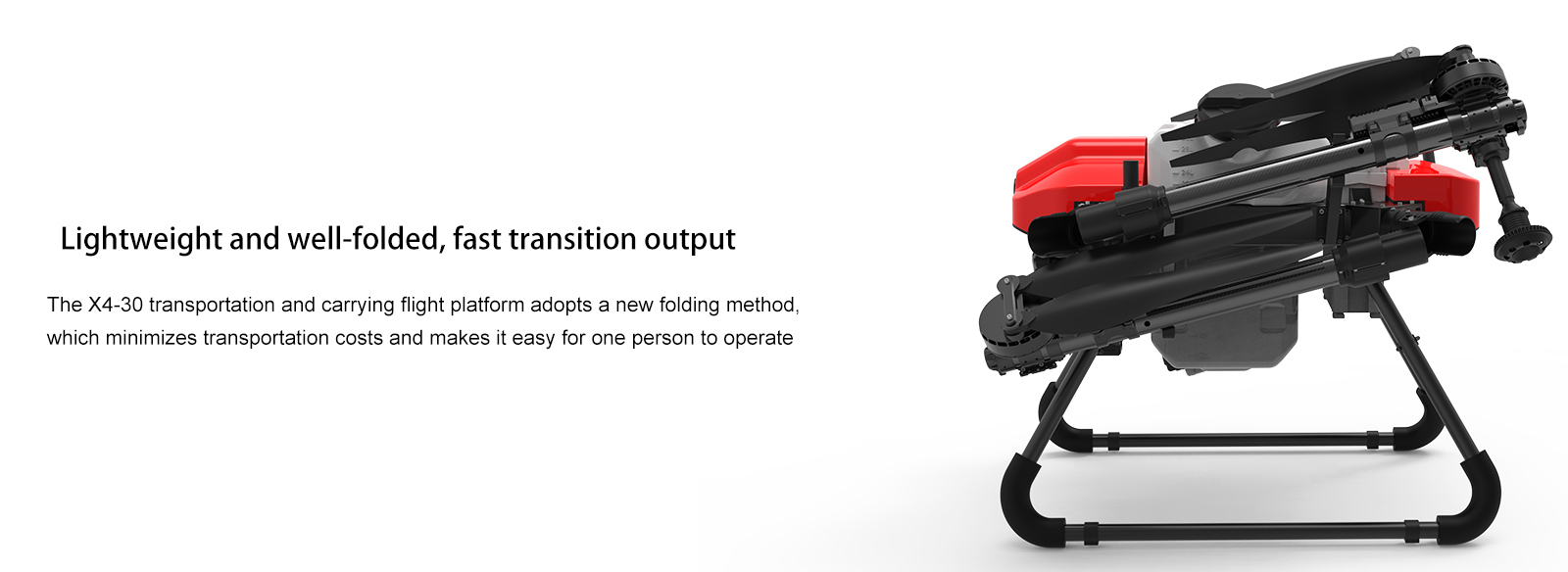

Folding size: 845*860*775mm
Product wheelbase: 2050mm
Arm size: 50mm carbon fiber tube

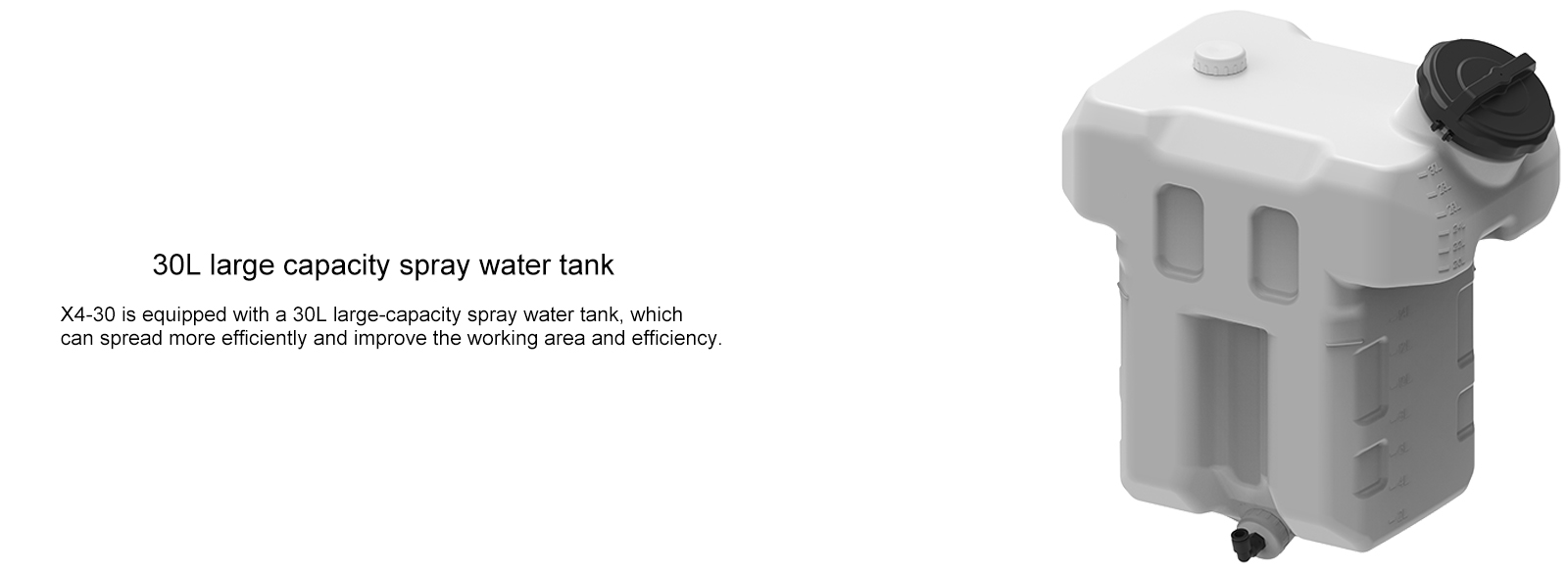

Medicine box volume: full load 30L (working load, full load 30KG)
The volume of the blasting operation box: 40L (maximum internal load, 40KG)
Hovering time: no-load hovering 21min (@28000mAh & take-off weight 38kg)
                  Hovering at full load for 8min (@28000mAh & take-off weight 66kg)
                  Hovering at full load for 7 minutes (@28000mAh & take-off weight 75kg)
Working spray width: 6~10 meters (about 1.5-3M from the height of the crop)
Recommended configuration: flight control (optional)
                 Powertrain: X11
                 Battery: 14S 20000-28000mAh (optional)
