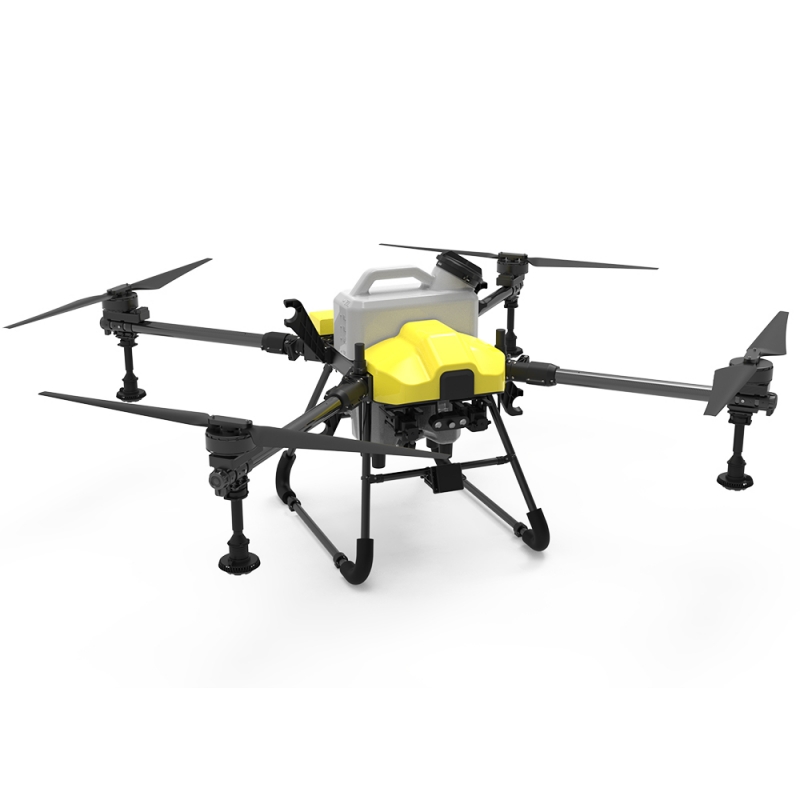

X4-20 20KG Agricultural Plant Protection UAV

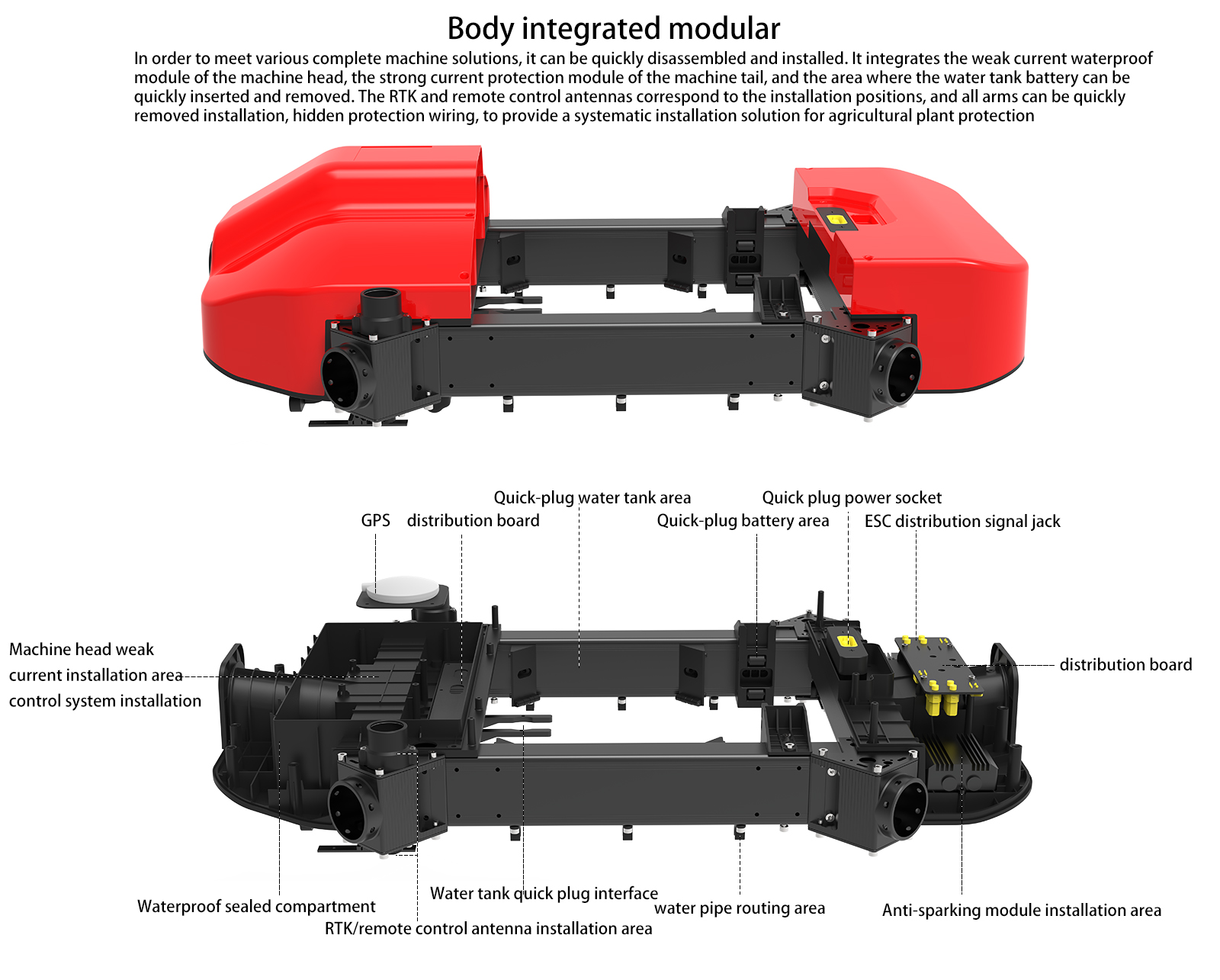

X4-20 Pluggable Agricultural UAV Pluggable Structure

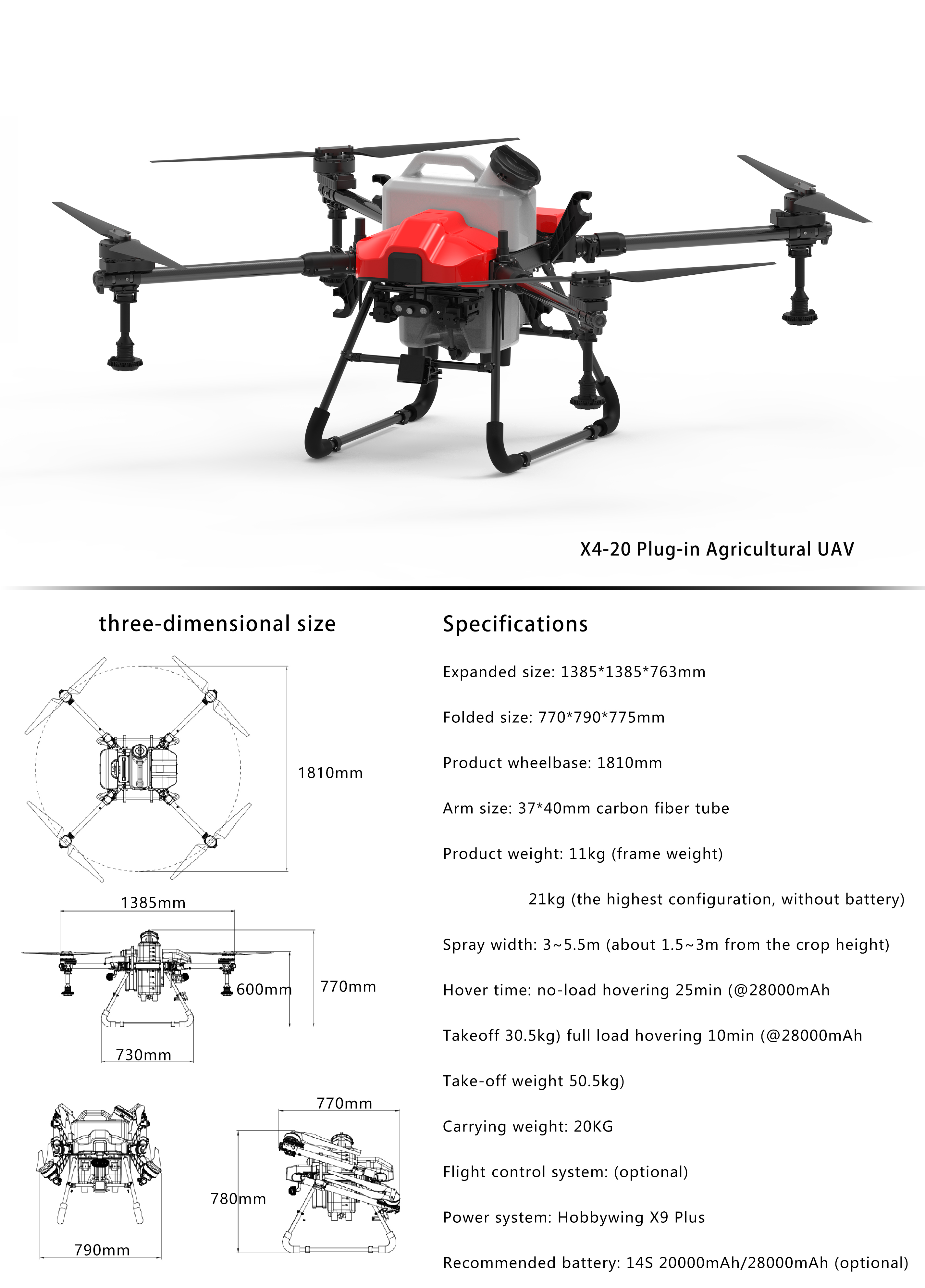

20kg plug-in rack basic parameters:
Product name: X4-20
Product type: plug-in plant protection machine structure
Product wheelbase: 1810mm
Product Size:1385*1385*763mm (expanded)

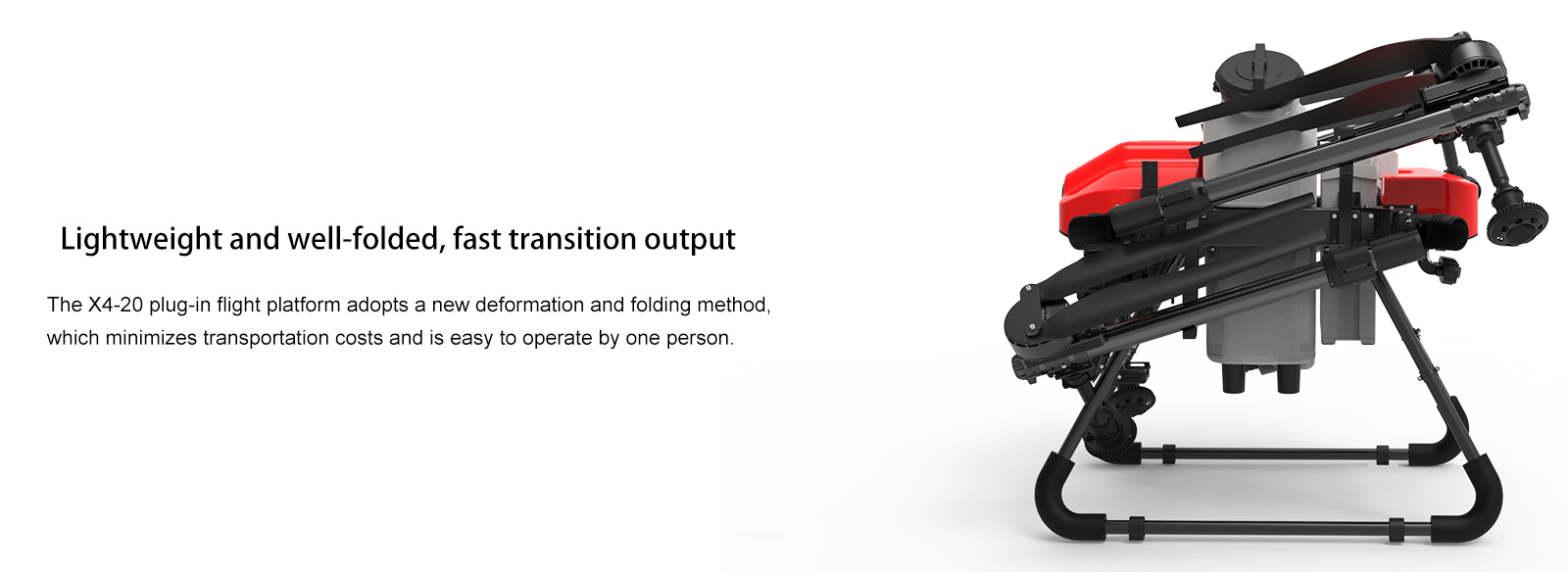

                    770*790*780mm (folded)
Product weight: 1.68kg (weight of 20L water tank)
                          11kg (frame weight)
                          19~21kg (the highest configuration,excluding battery)
                          30.5kg (including battery weight)
                          50.5kg (full load, take-off weight)
Arm size: 37*40mm

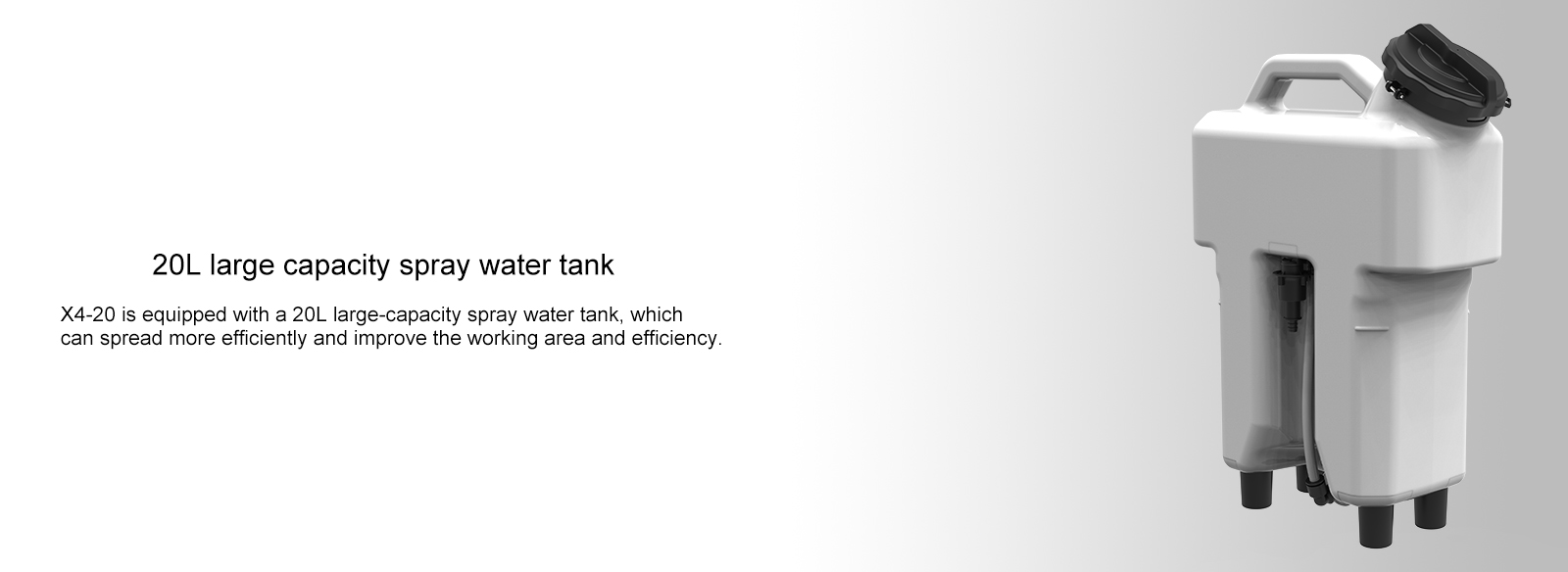

Medicine box volume: 20L
Spray width: 5~8 meters
Working efficiency: 90 acres/hour
Flight control: K++V2/V9 AG/ PALADIN
Remote control: H12/T12
Power system: X9 plus 100kv (motor)
                       120A (ESC)
                       36 inches (propeller)
Spraying system: 5L water pump (voltage:DC44-60.9V)
Pressure Sprinkler/Centrifugal Sprinkler Kit

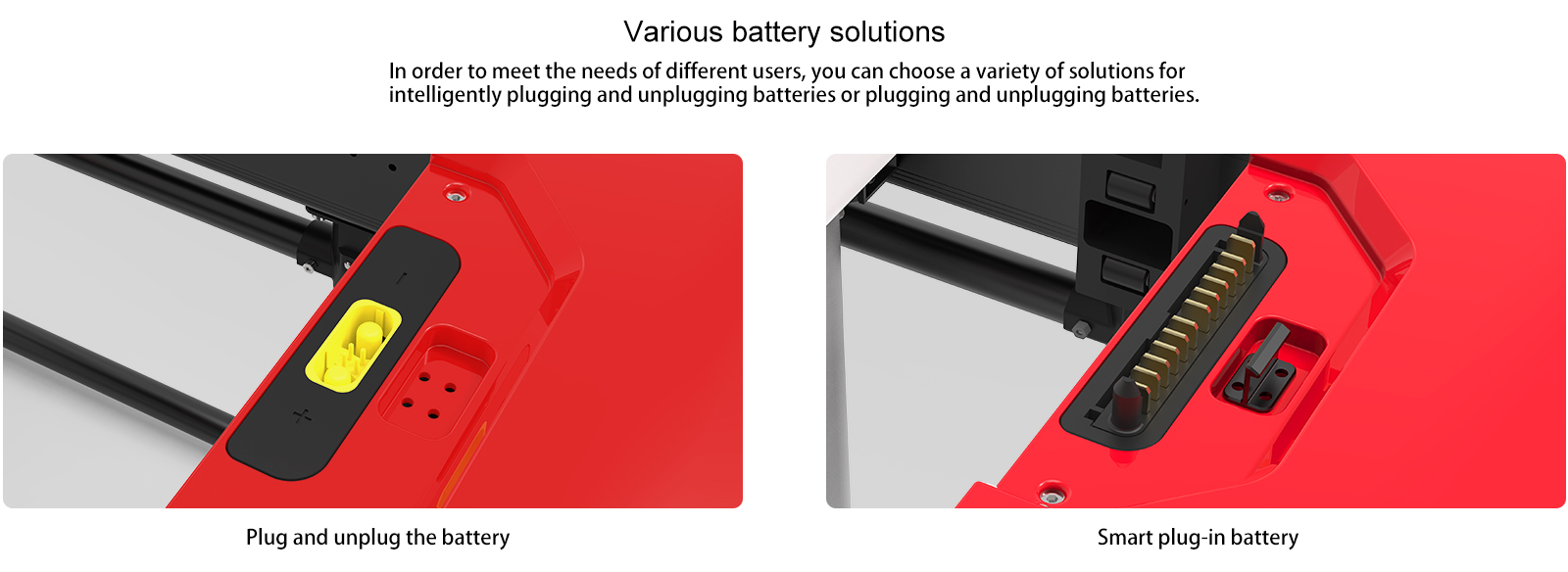

Battery: 14S 19000mAh/28000mAh
Hover time: 25 minutes (no-load hover 14S
28000mAh) 10 minutes (full-load hover 14S
28000mAh)
