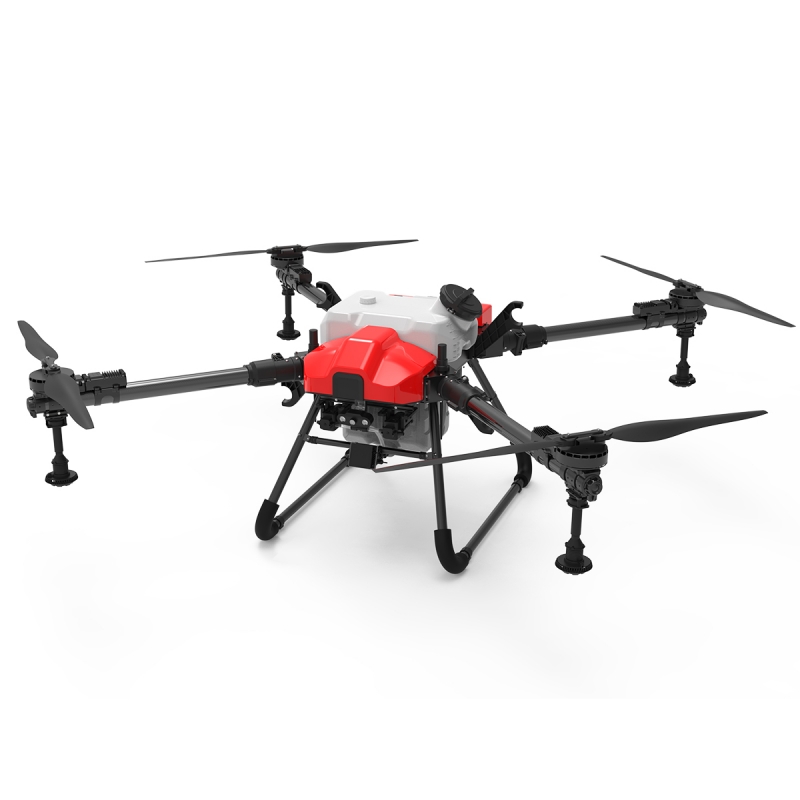

X4-30 30KG Agricultural Plant Protection UAV

30kg plug-in rack basic parameters:
Product type: plug-in plant protection machine structure
Product wheelbase: 2050mm
Product size: 1570*1570*715mm (expanded)
                     845*860*775mm (folded)
Product weight: 2.1kg (30L water tank weight)
                         13.5kg (frame weight)
                         26kg (the highest configuration,without battery)
                        35.5kg (including battery weight)
                        65.5kg (full load, take-off weight)
Arm size: 47*50mm
Medicine box volume: 30L
Spreading box volume: 40L
Spray width: 6~10 meters
Operation efficiency: 120 mu/hour
Flight control: K++V2/V9 AG/ PALADIN
Remote control: H12/T12
Power system: X11 95kv (motor)
150A (ESC)
41 inches (propeller)
Spraying system: 5L water pump (voltage:
DC44-60.9V)
Pressure Sprinkler/Centrifugal Sprinkler Kit
Battery: 14S 28000mAh
Spreading system: 360° large flow spreader
Hover time: 20 minutes (no-load hovering14S 28000mAh)
                   8 minutes (full-load
hovering 14S 28000mAh)
