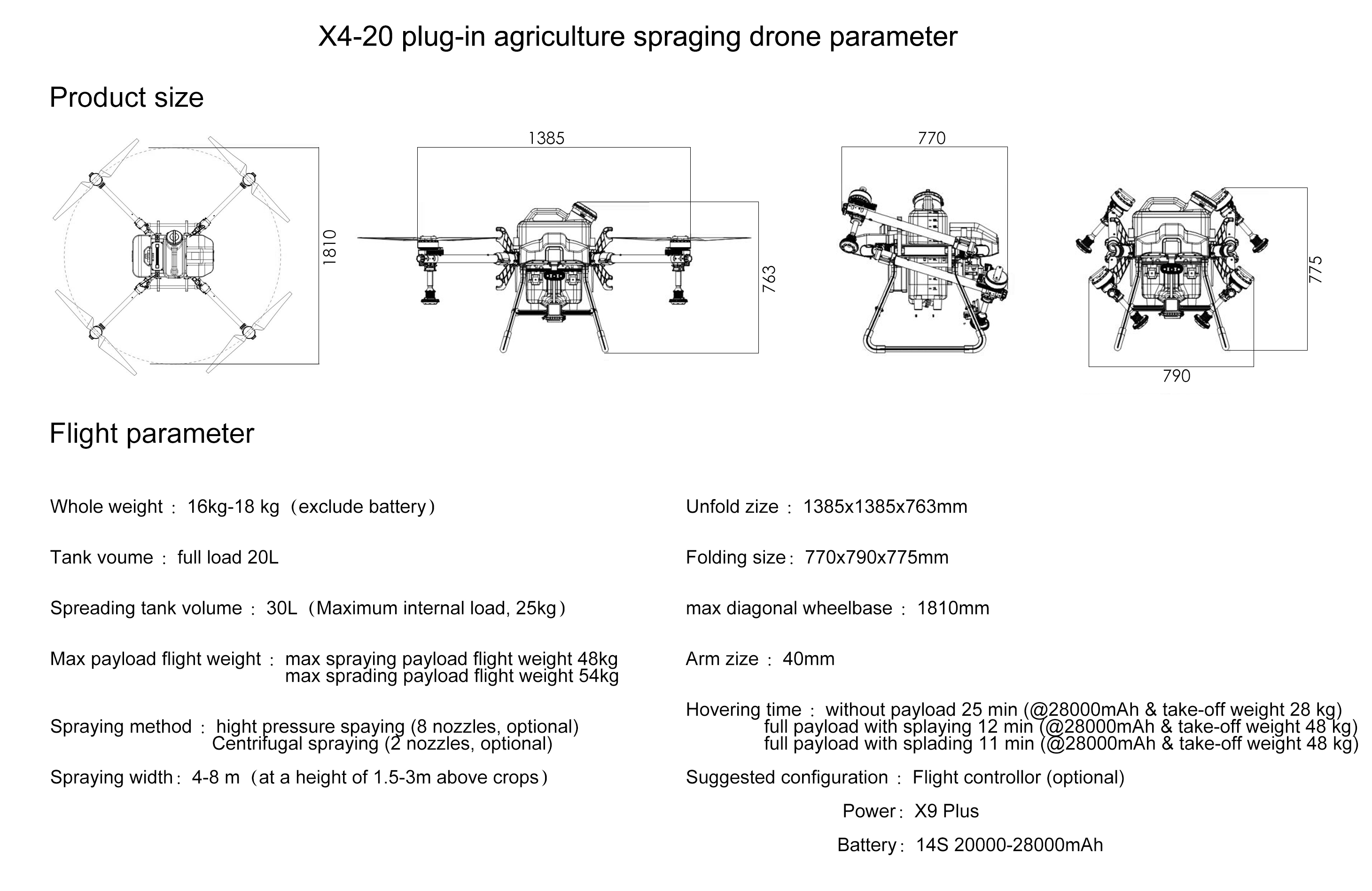

20kg plug-in rack basic parameters:

Product name: X4-20

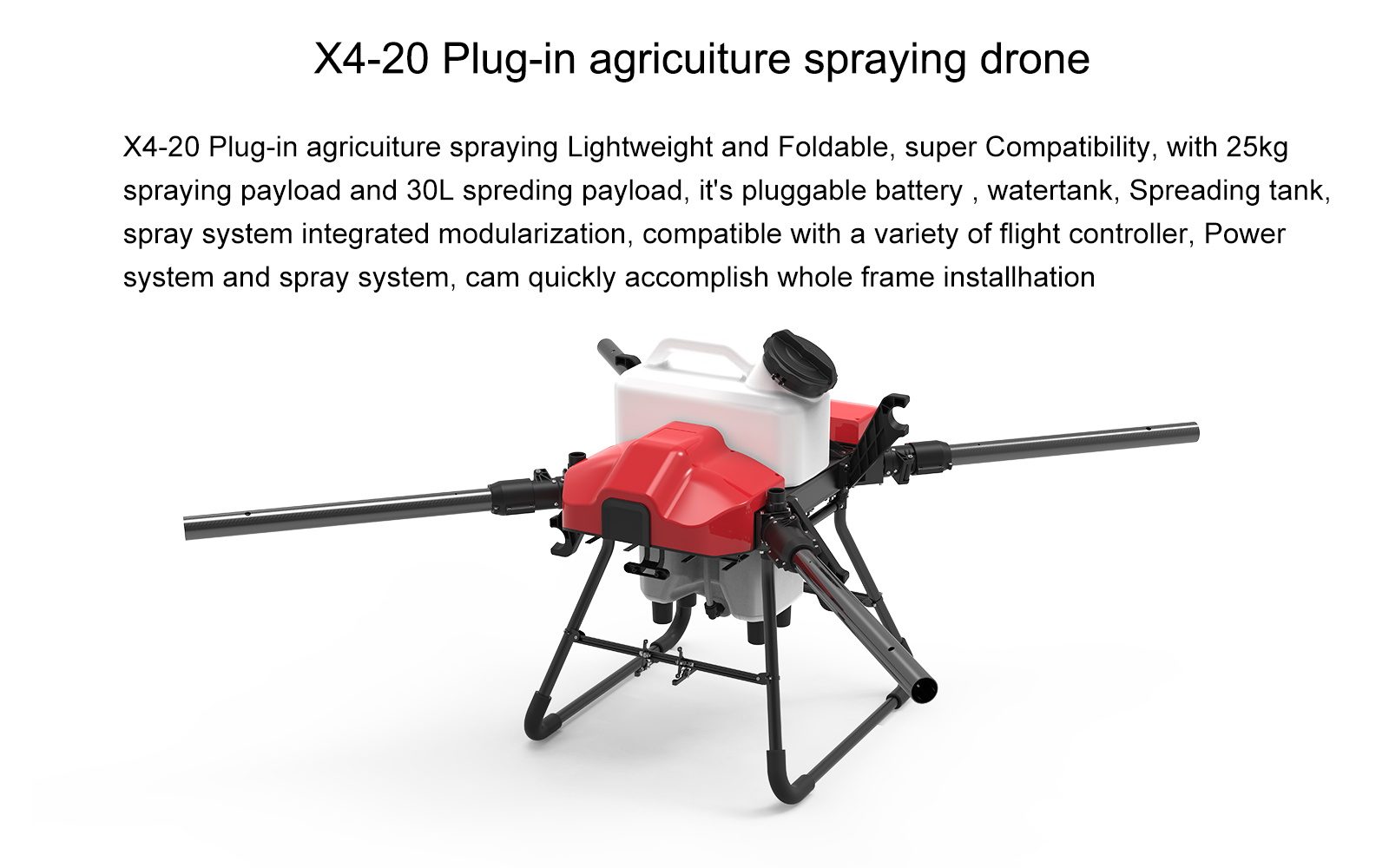

Product type: plug-in plant protection machine structure

Product weight: 19-21kg (maximum configuration, excluding battery)

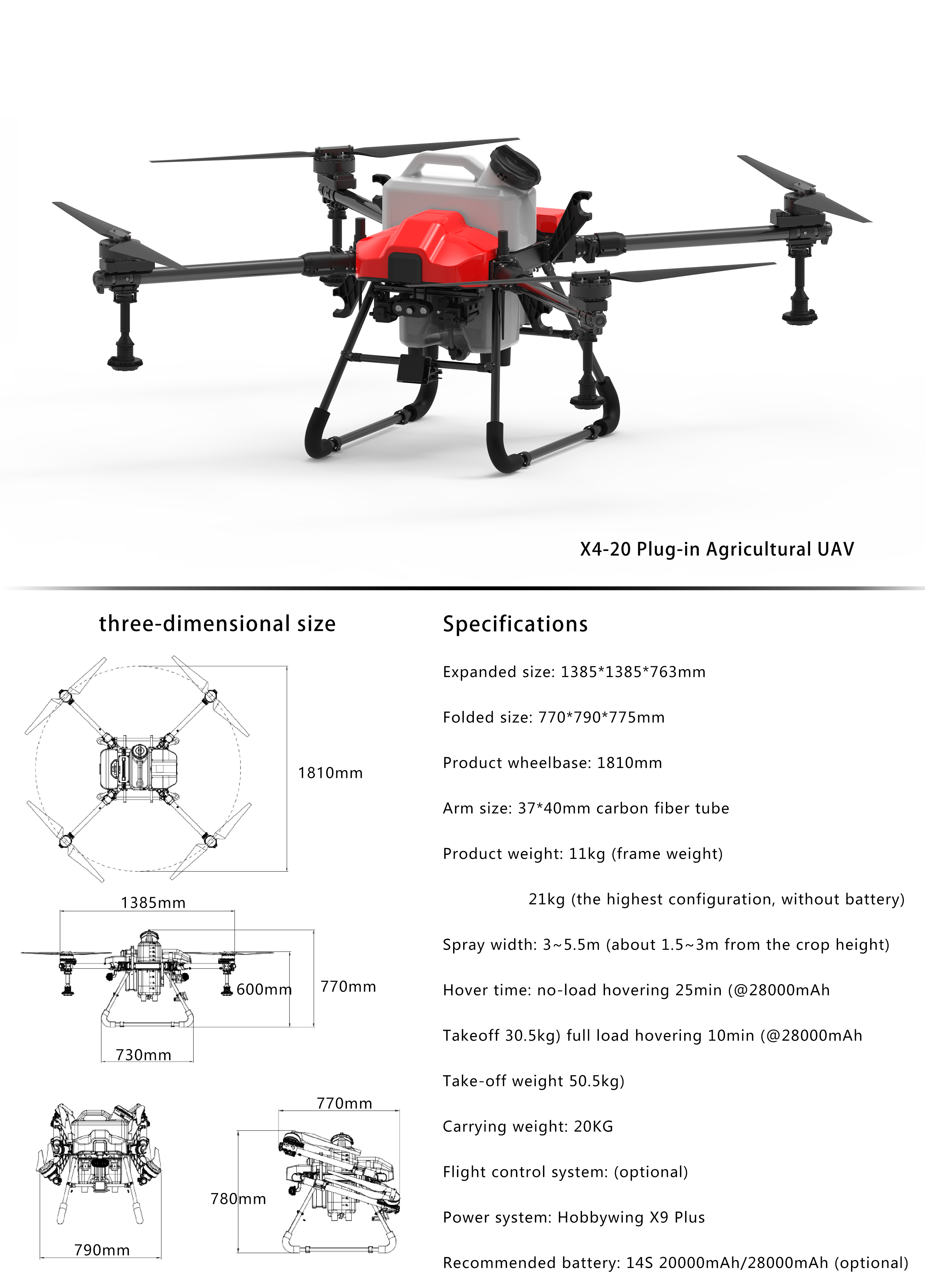

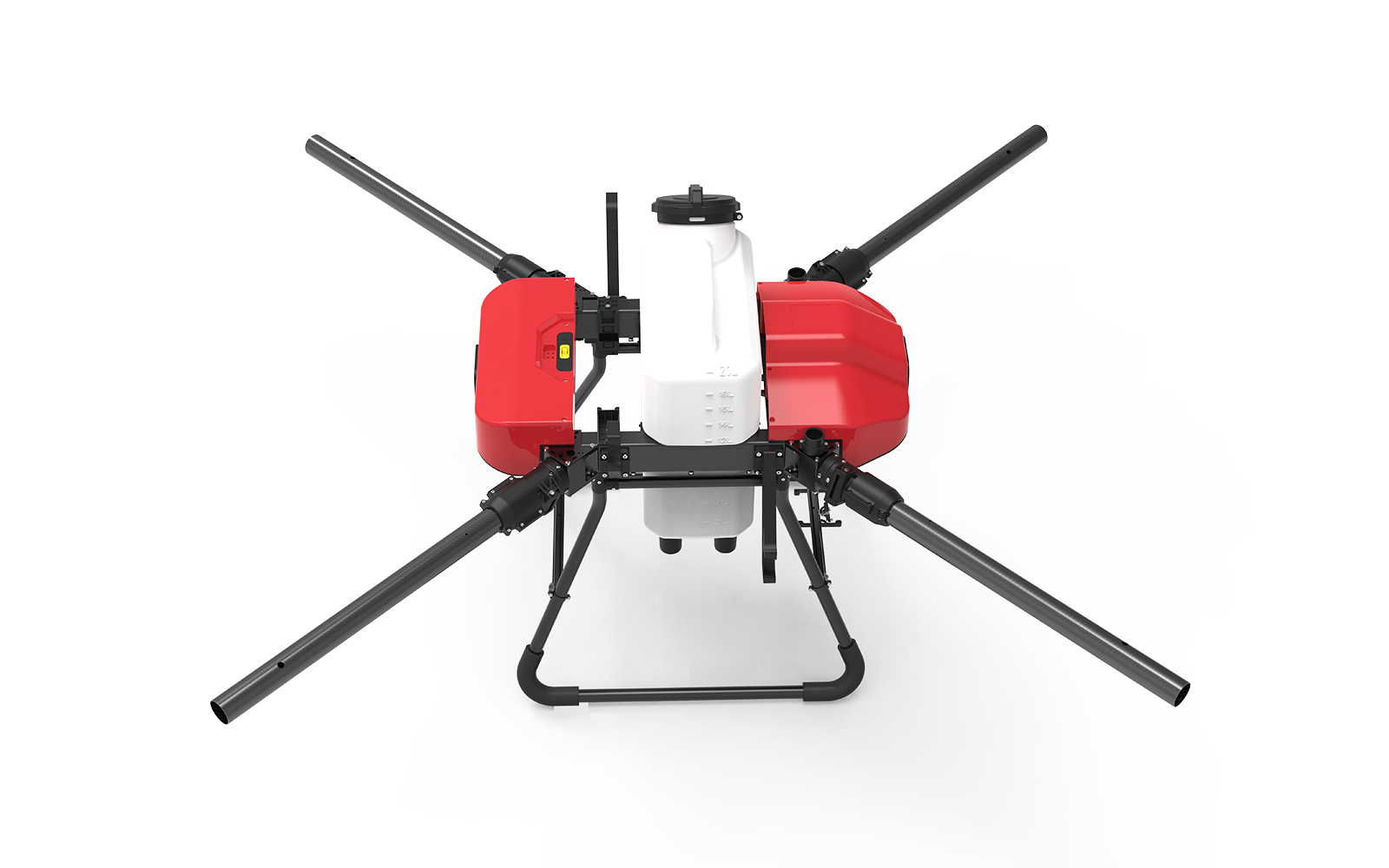

Expanded size: 1385*1385*763mm

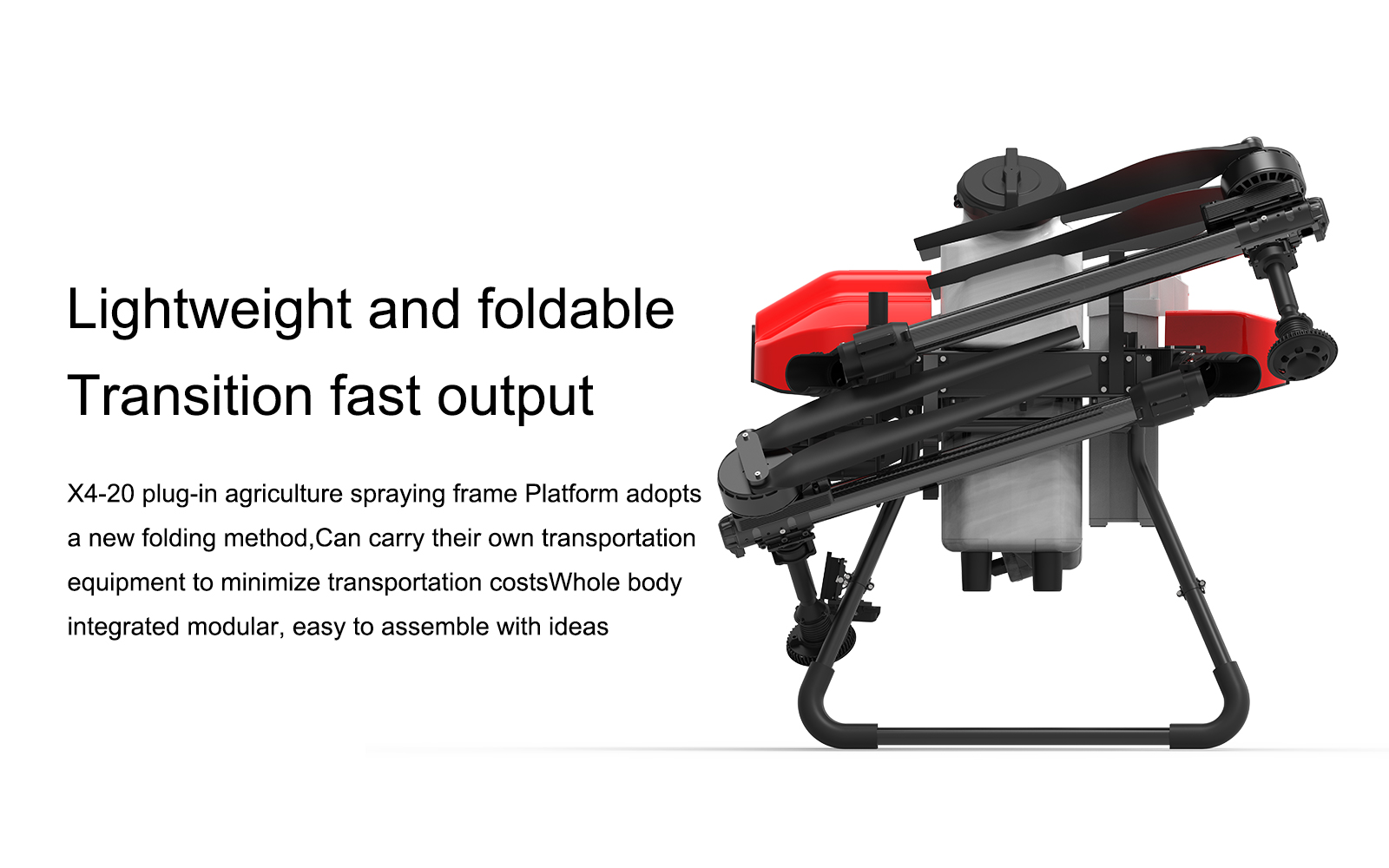

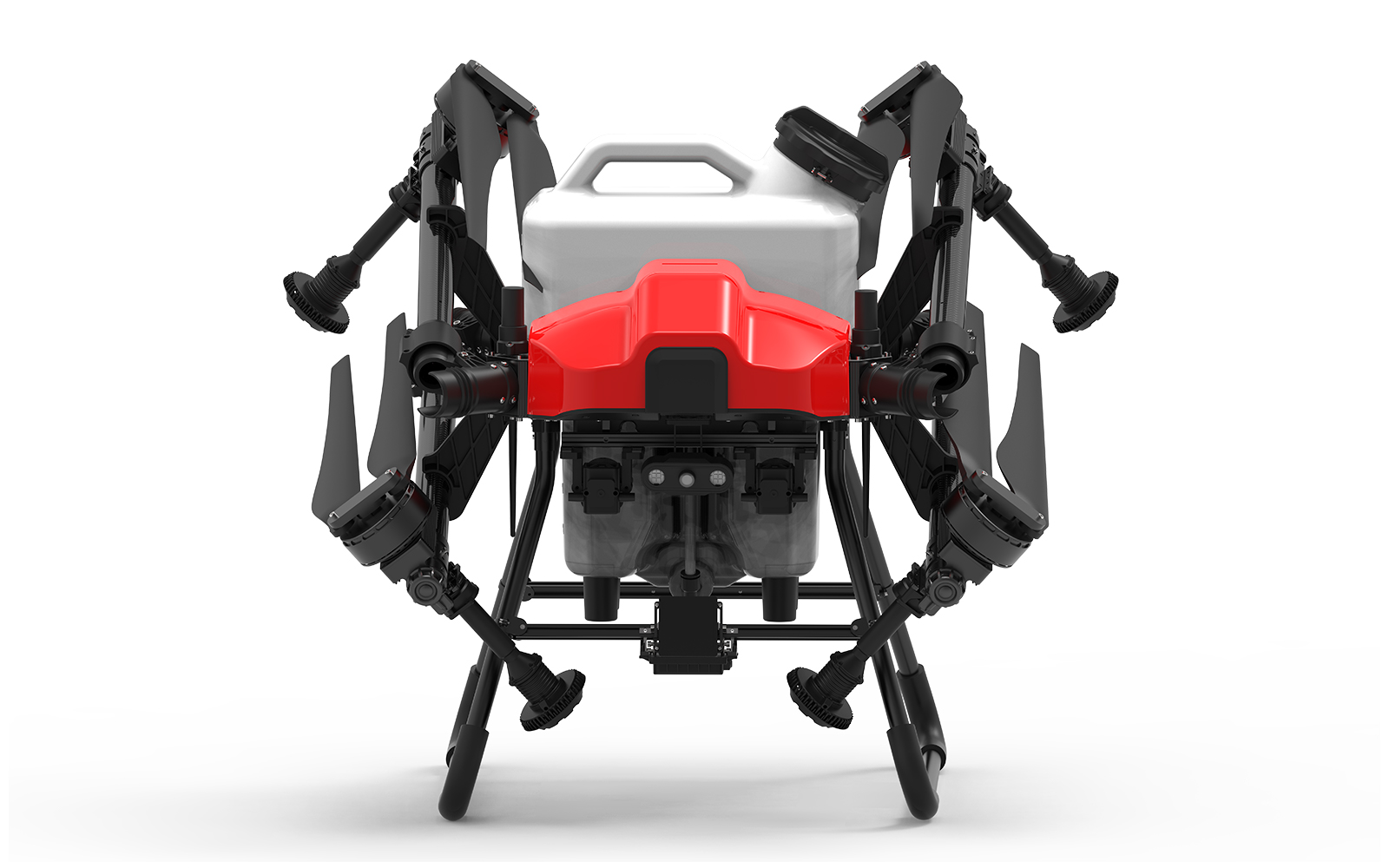

Folding size: 770*790*775mm

Product wheelbase: 1810mm

Arm size: 37*40mm carbon fiber tube

Medicine box volume: full load 20L (working load, full load 20KG)

The volume of the blasting operation box: 25L (maximum internal load, 25KG)

Hovering time: no-load hovering for 25min (@28000mAh & take-off weight 30.5kg)

                  Hovering at full load for 12min (@28000mAh & take-off weight 50.5kg)

                  Hovering at full load for 11min (@28000mAh & take-off weight 56.5kg)

Working spray width: 5~8 meters (about 1.5-3M from the height of the crop)

Recommended configuration: flight control (optional)

                 Powertrain: X9 plus

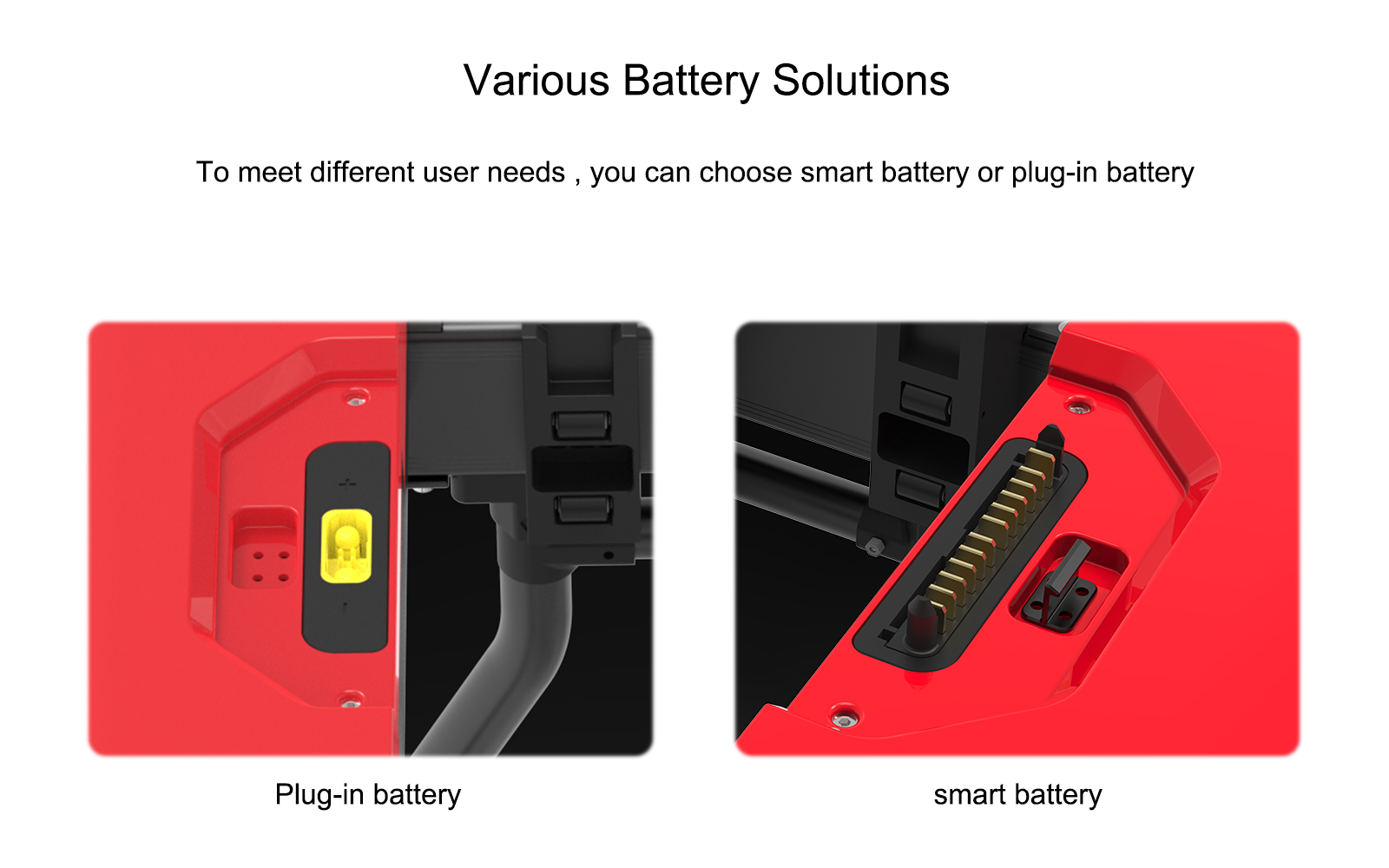

                 Battery: 14S 20000-28000mAh (optional)
