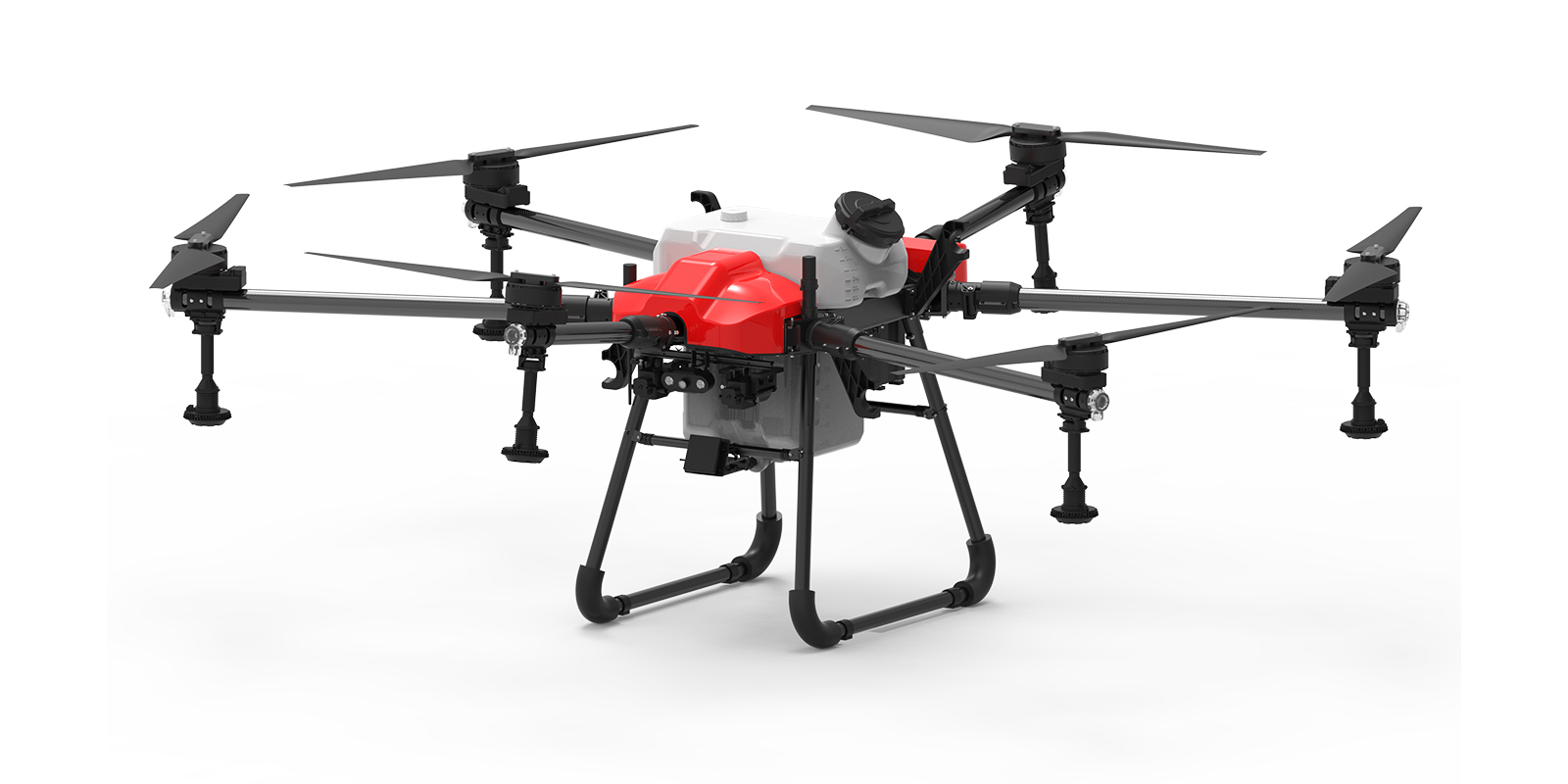

F30 Agricultural UAV

30kg plug-in rack basic parameters:
Product name: F30
Product Type: Six-rotor plug-in plant protection machine structure
Product weight: 24-27kg (maximum configuration, excluding battery)

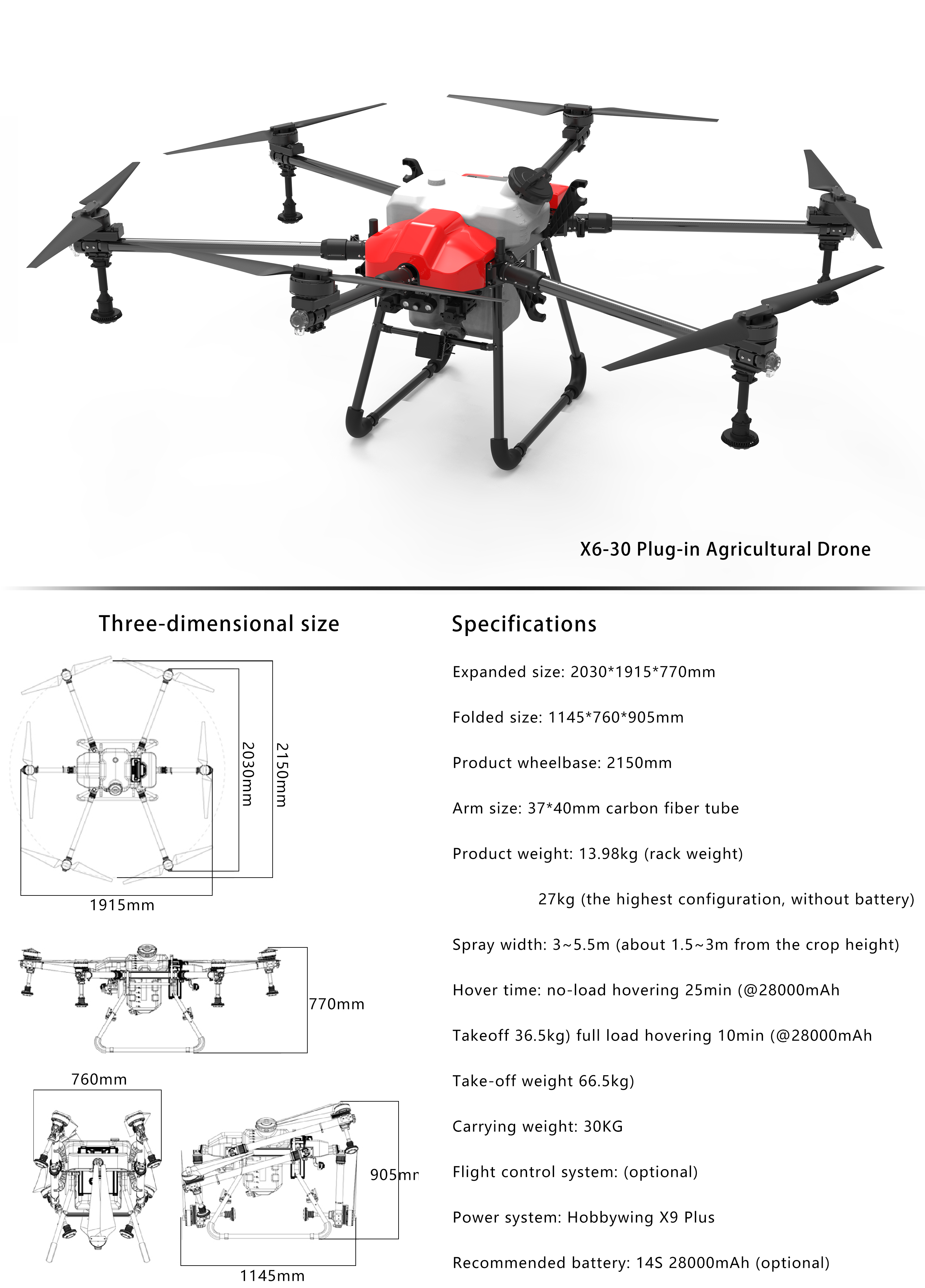

Expanded size: 2030*1915*770mm
Folding size: 1145*760*905mm
Product wheelbase: 2150mm
Arm size: 40mm carbon fiber tube
Medicine box volume: full load 30L (working load, full load 30KG)
The volume of the blasting operation box: 40L (maximum internal load, 40KG)
Hovering time: no-load hovering 21min (@28000mAh & take-off weight 38kg)
                  Hovering at full load for 7.5min (@28000mAh & take-off weight 67kg)
                  Hovering at full load for 7min (@28000mAh & take-off weight 77kg)
Working spray width: 4~10 meters (6 centrifugal sprinklers are about 1.5-3M from the height of the crop)
Recommended configuration: flight control (optional)
                 Powertrain: X11/X9 plus
                 Battery: 14S 20000-28000mAh (optional)

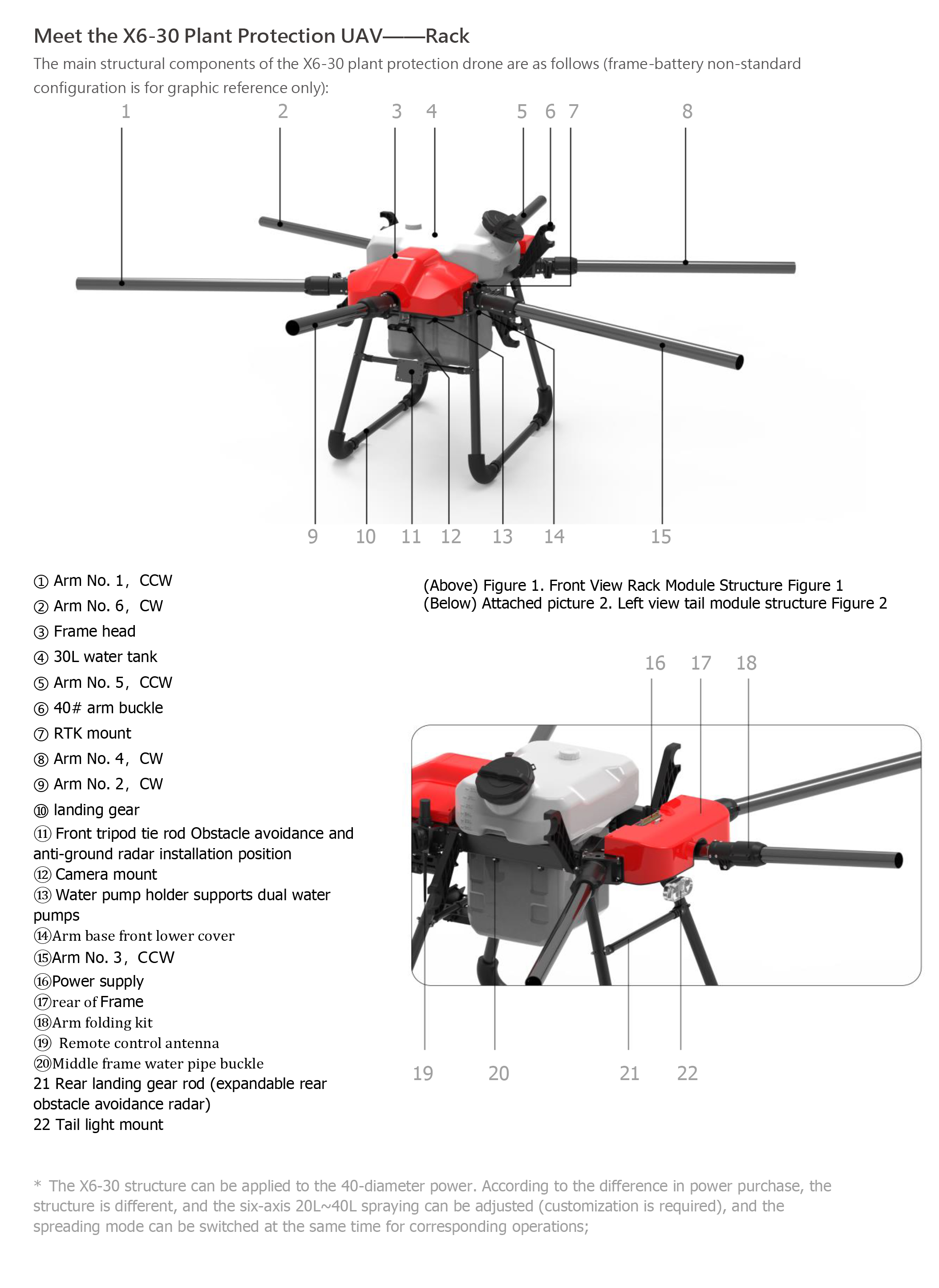

    Shenzhen DreamEagle Technology - F30 Plant Protection UAV Structure

    Plug-in rack and foldable arms for quick spraying tasks




    The F30 increases the maximum load of the plant protection drone structure to 40 kg,
    providing a higher installation platform; the quickly folded "deformed" fuselage,

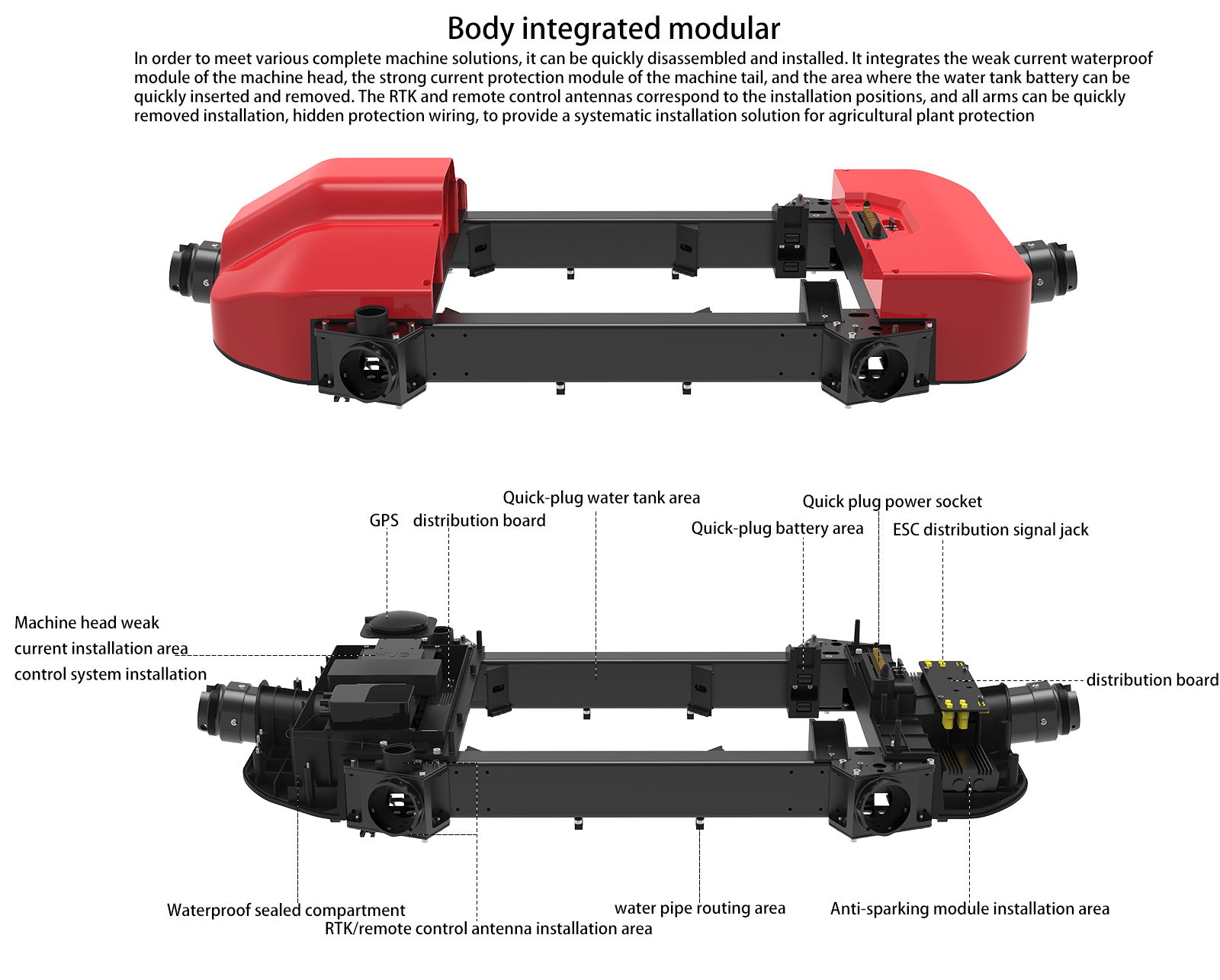

    The streamlined modular design saves time and effort for installation;
    with related control systems to optimize agricultural solutions, the machine cost is lower

    All-in-one modular, can be equipped with 30L medicine box spraying,
    40L particle spreading system, one machine can be quickly converted for multiple purposes



    F30 Products
